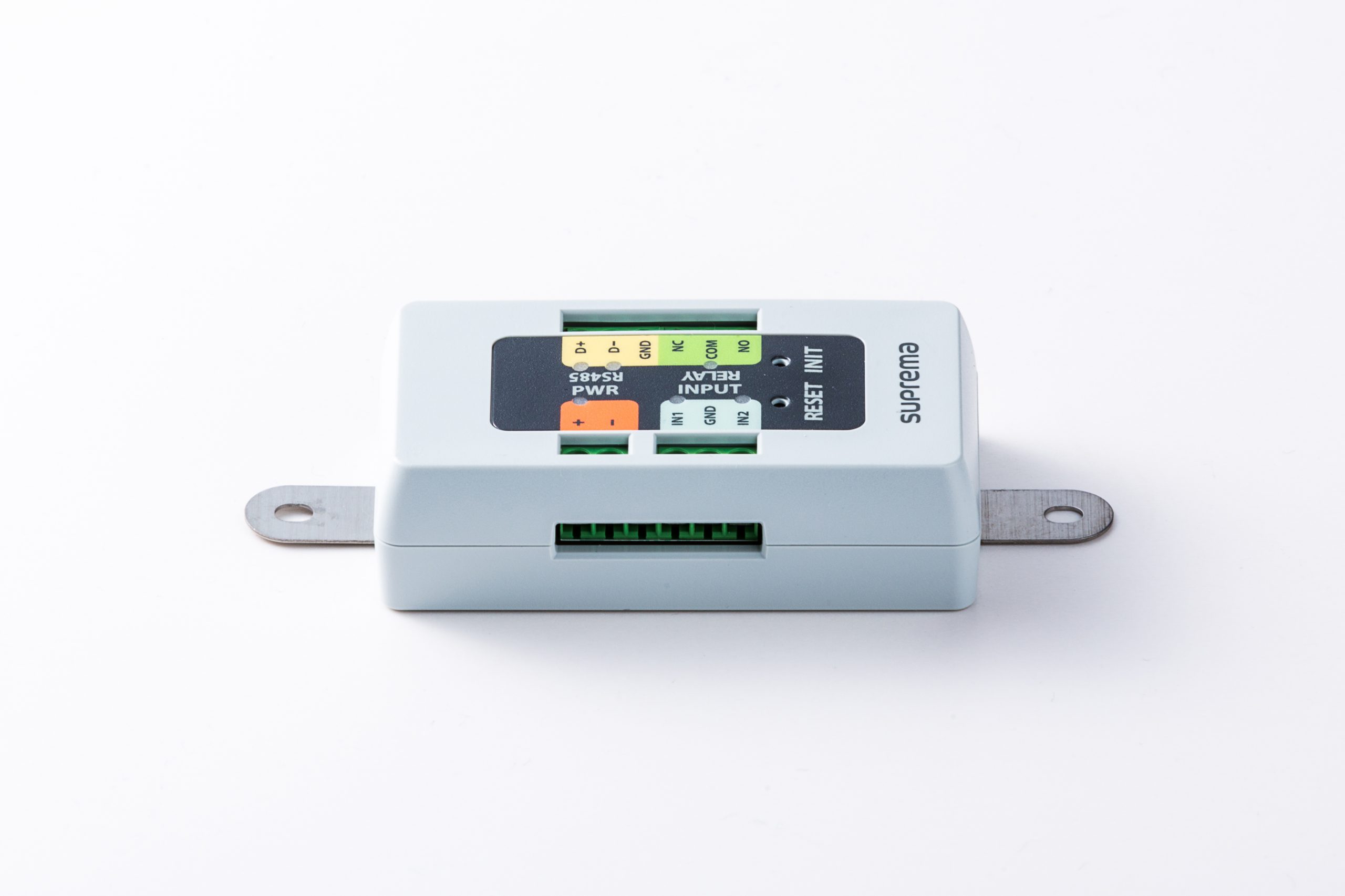

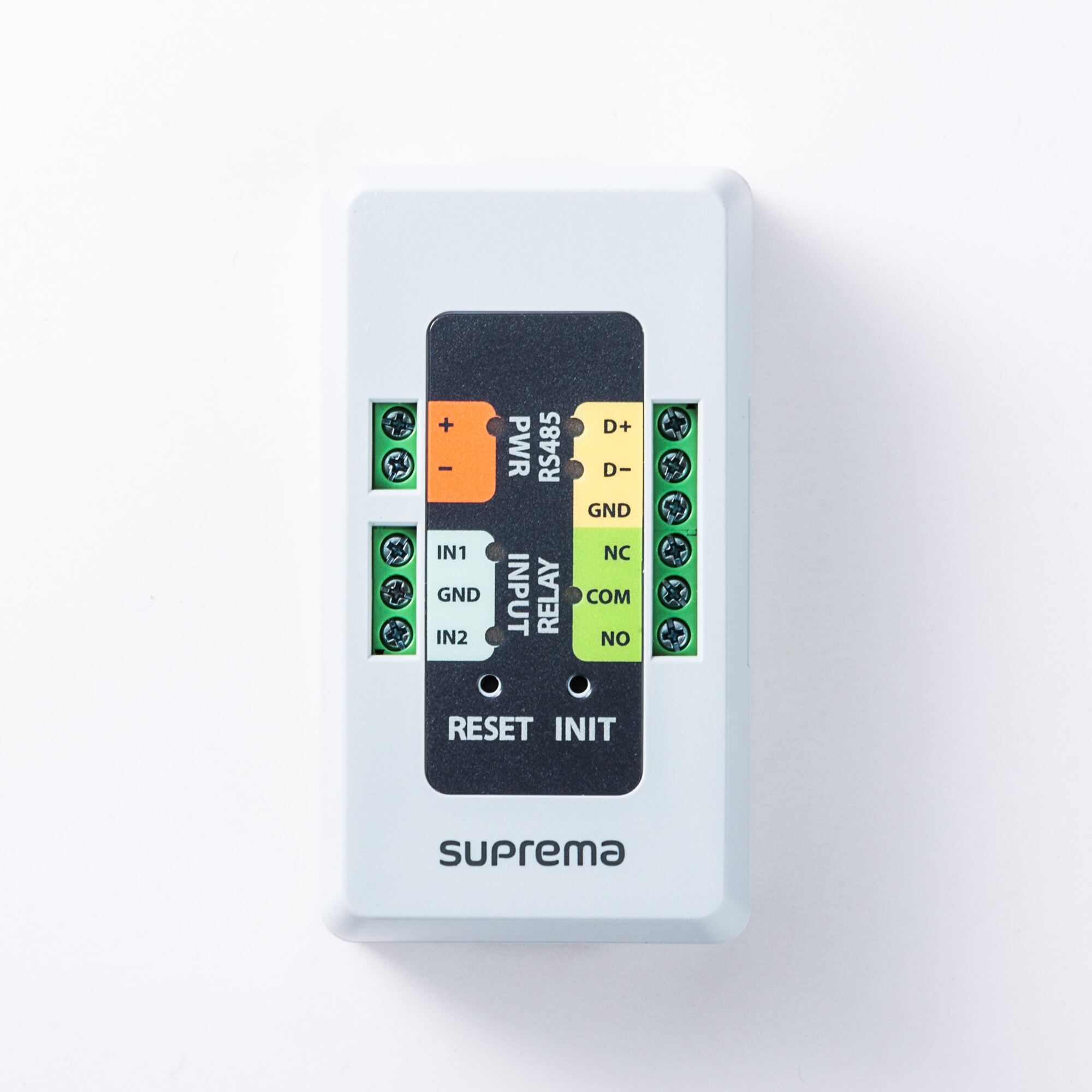

Suprema Secure Moule SIO2 Compact Secure Single Door I/O Module

描述

Suprema Secure Moule SIO2 Compact Secure Single Door I/O Module

Secure Module provides secure door control via encrypted communication when combined with other Suprema devices. Its ultra-compact form factor allows it to be installed and used in different environments.

Specifications

General

• CPU: Cortex M3 72 MHz
• Memory: 128 KB Flash + 20 KB RAM
• LED
  – Multi-color
  • PWR
  • RS-485 TX/RX
  • IN1/IN2
  • RELAY
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Dimension (W x H x D): 36 x 65 x 18 (mm)
• Weight: 37 g
• Certificates: CE, UKCA, KC, FCC, RoHS, REACH, WEEE

Interface

• RS-485: 1 ch
• TTL Input: 2 ch
• Relay: 1 relay

Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.5 A
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load
