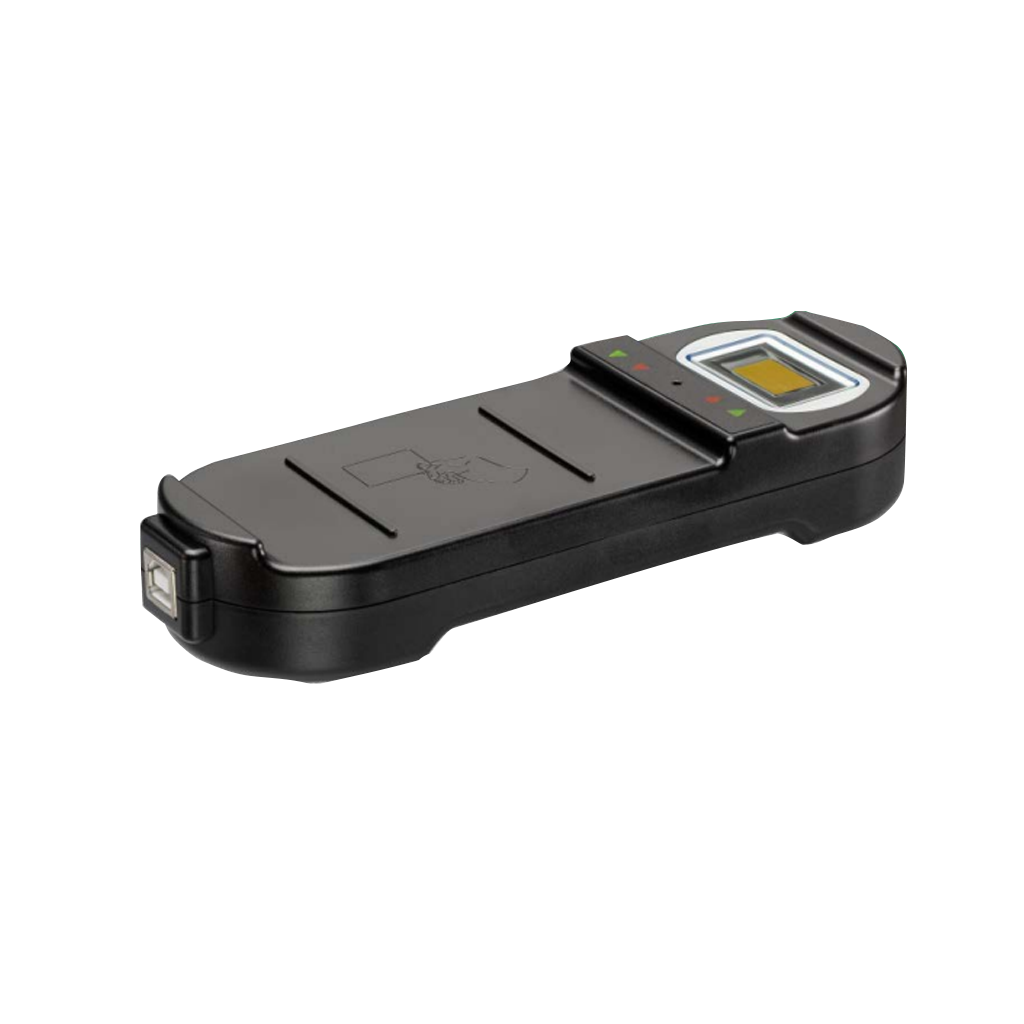

ROSSLARE CP–R26
MIFARE Classic® EV1 Card and Fingerprint
Desktop Programmer
MAIN FEATURES
- Provides content and writing definitions for the sectors
- Creates master cards for easy and fast reader configuration
- Allows the user to read, program, and verify cards quickly and easily
- USB 2.0 computer connection (identified automatically, no drivers needed)
- LEDs and sounder indicate different activities, including user guidance and success or error indications
- Cards types supported: MIFARE Classic EV1 ISO 14443A
- Slim and lightweight design, small desktop footprint
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS | |
Operating Voltage | 12 VDC from a USB |
Input Current | Standby: 155 mA Maximum: 230 mA |
Indicators | Card green/red LED: Provides visual feedback on card reading and writing as well as success or fail indication Fingerprint green/red: Provides visual feedback on card reading and writing as well as success or fail indication Fingerprint three blue small LEDs: indication for the user to swipe a finger when needed Sounder: Provides audible indication for guidance as well as operation success or failure |
COMPUTER REQUIREMENTS | |
Operating System | Windows XP SP2, Windows Server 2003, Windows Server 2008, Windows Vista, Windows 7, Windows 8, Windows 10 |
Processor | Minimum 400 MHz Pentium or equivalent |
RAM Memory | 512MB |
Free Hard Disk space | 1 GB |
USB | One USB 2.0 port |
OPERATING SPECIFICATIONS | |
Fingerprint Sensor Type | Capacitive type CS |
RF Frequency | MIFARE Classic EV1 Compatible 1K and 4K ISO-14443A-3 13.56 MHz Card |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature Range | -10°C to 50°C (50°F to 122°F) |
Operating Humidity Range | 0 to 95% (non-condensing) |
Operating Environment | Indoor only |
PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 173 x 58 x 33 mm (6.2 x 2.3 x 1.3 in.) |
Weight | 309 g (10.9 oz) |
SYSTEM COMPONENTS | CP-R26 is compatible with Rosslare’s Sector and Full Fingerprint biometric readers. For best performance we recommend using Rosslare accessories. |
