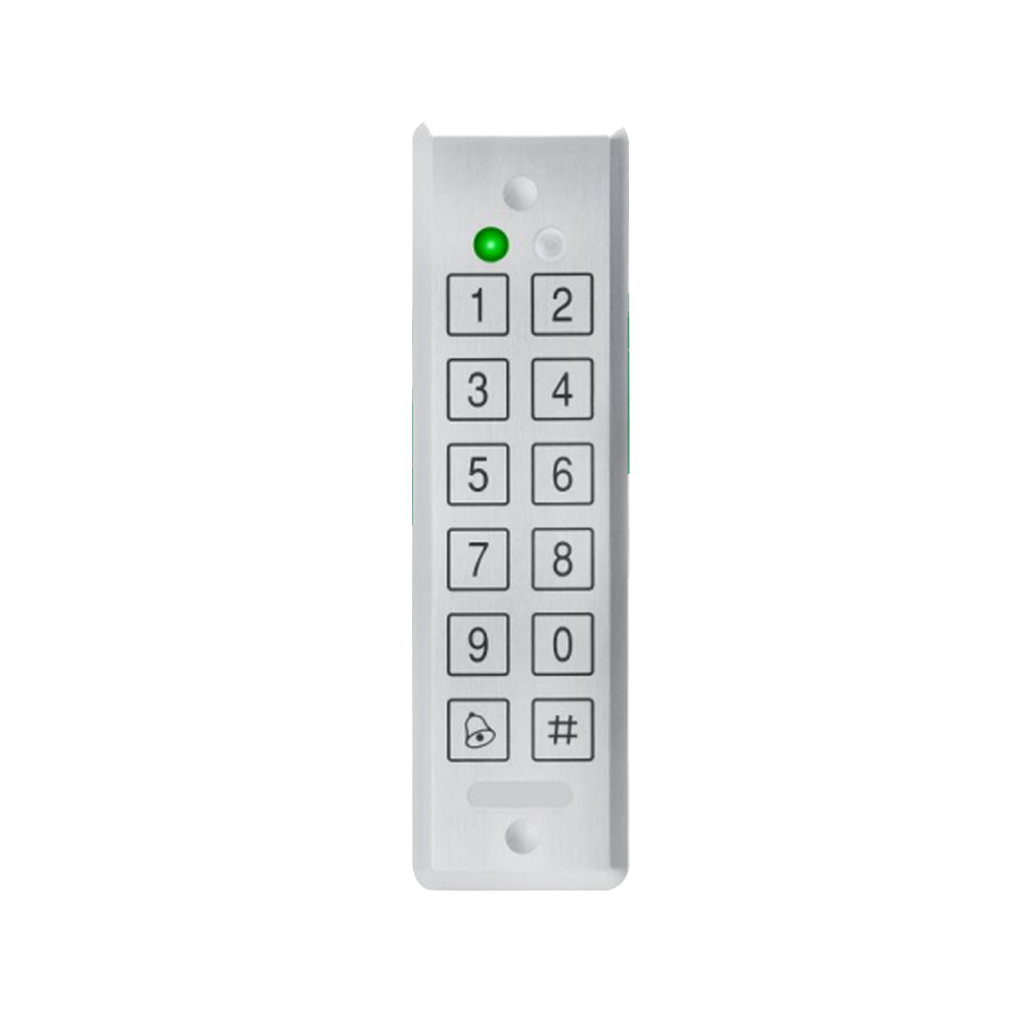

ROSSLARE AYC-E55
Ultra-Slim Piezo PIN Reader – Convertible
MAIN FEATURES
Supports 4- to 8-digit PIN credentials
Smooth, attractive design, for all-weather indoor and outdoor operation
Large, highly visible piezoelectric keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED, and sounder indicators
Optical back tamper detection output
Default operation as a multi-format reader Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for key stream, binary, parity, and 2×6 matrix
Supports Wiegand or Clock & Data transmission formats
Comes with a mounting and drilling label
60 cm (23.6 in.) shielded interface cable
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | Standby: 15 mA @ 12 VDC, Maximum: 40 mA @ 16 VDC |
| Tamper | Open collector, active low, 30 mA max sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 2×6 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments |
| Audio/Visual | Two tri-colored LED indicators, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit PIN codes |
| CONTROLLER MODE Available with PS-x25T series intelligent power supplies only | |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, and Master |
| Security Modes | Normal, Bypass, and Secure |
| Outputs | Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs | REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | All weather, indoor and outdoor use, meets IP68 |
| Operating Temperature | -30˚C to 65˚C (-22˚F to 150˚F) |
| Operating Humidity | 0 to 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 155 x 44 x 6.5 mm (6.10 x 1.73 x 0.26 in.) |
| Weight | 120 g (0.265 lbs) |
| SYSTEM COMPONENTS | AYC-E55 (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
