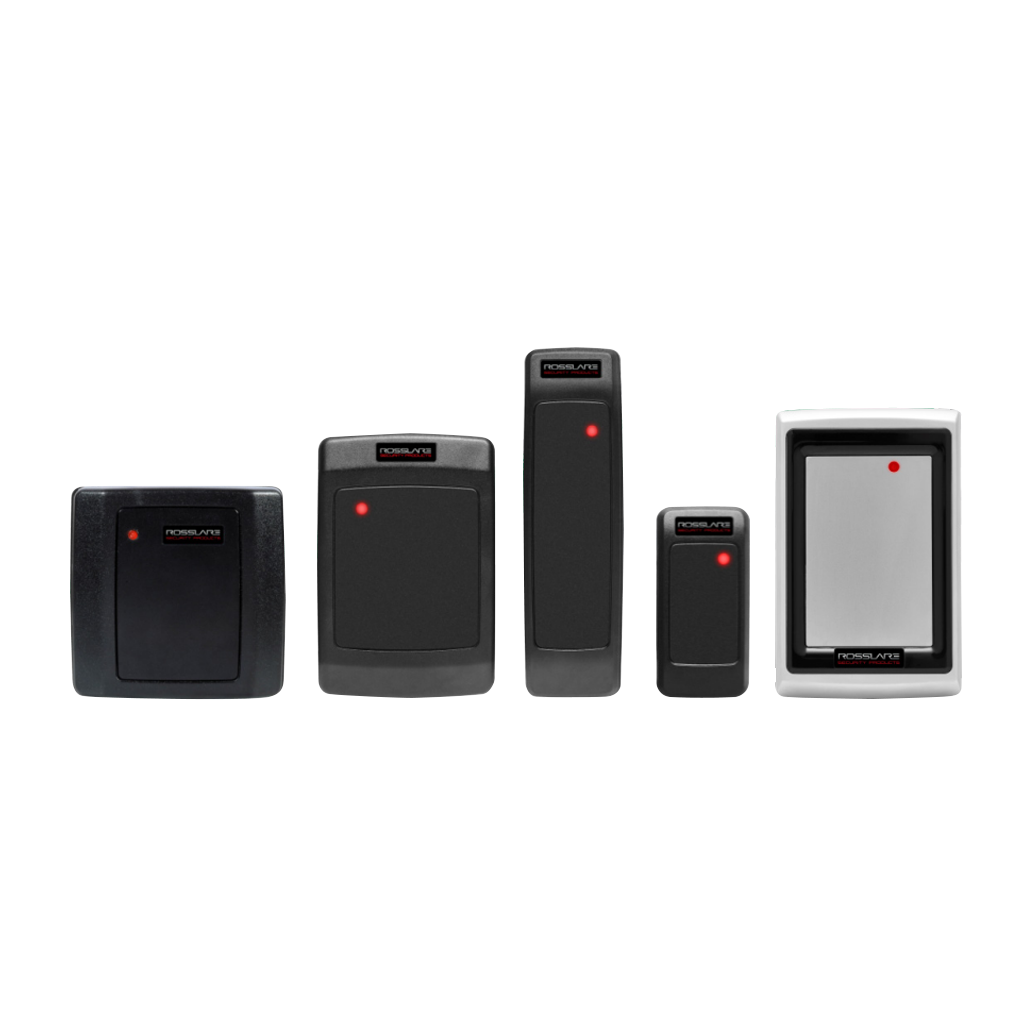

ROSSLARE AY-x12C
Proximity Readers Series – 125 kHz
MAIN FEATURES
Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
Wide range operating voltage: 5 to 16 VDC
45 cm (18 in.) pigtail cable
PROFESSIONAL GRADE FEATURES
RF Modulation: ASK at 125 kHz
Internal sounder with external control option
Tri-color LED with external control inputs
External reader hold control
Optical wall tamper detection
Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications
Made of tough polycarbonate UV-resistant plastic
Comes with mounting template for easier installation
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS | ||||||
Operating Voltage Range | 5–16 VDC, from a regulated power supply | |||||
Standby Input Current | 60 mA @ 12 V | |||||
Maximum Input Current | 120 mA @ 12 V | |||||
Proximity Card Reader | Maximum read range*: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz Compatible cards: 26-Bit EM cards | |||||
Tamper Output | Open collector, active low, max. sink current 16 mA | |||||
LED Control Input | Dry Contact, N.O. | |||||
OPERATIONAL SPECIFICATIONS | ||||||
Output Format | Wiegand 26-Bit, RS-232, or Clock & Data | |||||
Audio/Visual | Tri-colored LED indicator, built-in sounder | |||||
Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. | |||||
ENVIRONMENTAL SPECIFICATIONS | ||||||
Operating Environment | Water resistant, suitable for outdoor use (IP65) | |||||
Operating Temperature | -31ºC to 63ºC (-25ºF to 145ºF) | |||||
Operating Humidity | 0% to 95% (non-condensing) | |||||
PHYSICAL SPECIFICATIONS |
| |||||
Dimensions (H x W x D) |
| |||||
Weight |
| |||||
System Components | The AY-x12C series is compatible with a variety of Rosslare’s controllers, as well as with many third-party access control systems. A mounting spacer is available for installations over metallic surface for selected models. |
