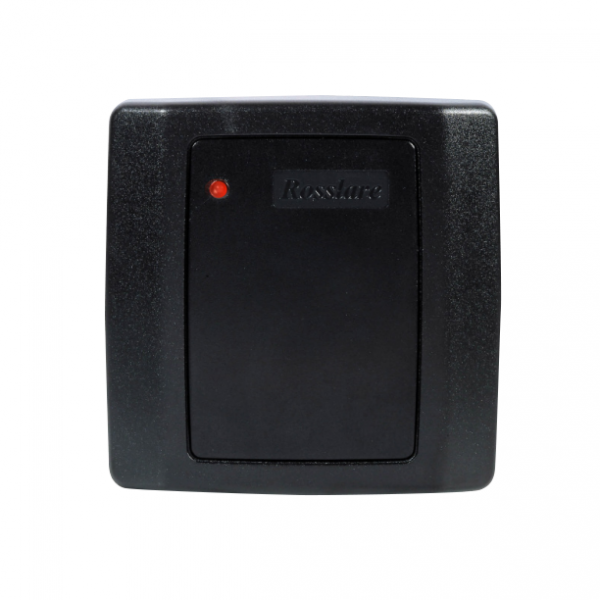

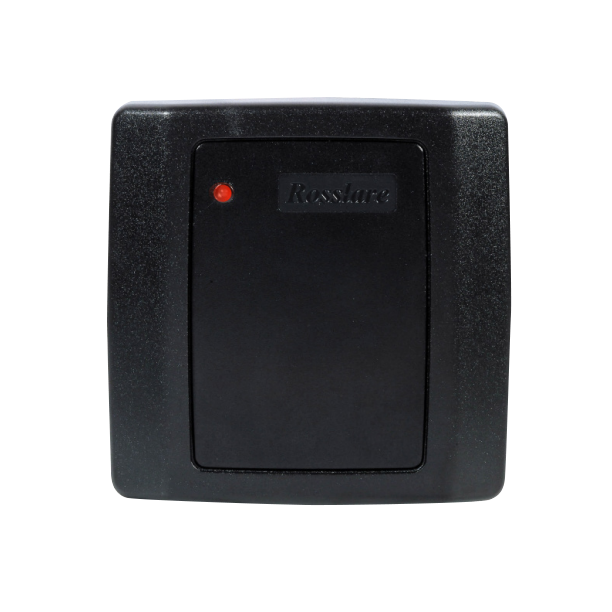

ROSSLARE AY-M26
MIFARE Classic® EV1 Sector Reader
MAIN FEATURES
Advanced, secure, multi-application functionality for intelligent installations
Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
Configurable multi-output format, supports multiple formats including Wiegand 26-bit
Compatible with CP-R25 or CP-R26 USB Desktop Card Programmers
PC software for Master and User Card configuration (AS-B01)
PROFESSIONAL GRADE FEATURES
Reads MIFARE Classic® EV1 ISO14443 Type A, standard cards
Dedicated LED and buzzer control inputs
Optical tamper sensor for case and wall tamper detection
Fully compatible with MIFARE Classic® EV1 1K and 4K
Reads card’s serial number with MIFARE Classic® EV1 Ultralight and MIFARE® DESFire®
SPECIFICATIONS
| ELECTRICAL CHARACTERISTICS | |
| Operating Voltage Range | 6.5–16 VDC |
| Standby Input Current | 110 mA |
| Maximum Input Current | 165 mA |
| Tamper Output | Open collector, active low, max sink current 30 mA |
| OPERATIONAL CHARACTERISTICS | |
| Inputs | Programmable LED control/buzzer control input, N.O., Dry Contact |
| Indicators | Tri-colored LED indicator |
| Output Format | Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit |
| Built-In Proximity Reader | Operating Frequency: 13.56 MHz MIFARE Classic EV1 Compatible ISO-14443A-3 |
| Max. Proximity Read Range | 70 mm (2.8 in.) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operating Environment | Water resistant, suitable for outdoor use (meets IP65) |
| Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| MECHANICAL CHARACTERISTICS | |
| Dimensions (H x W x D) | 89 x 89 x 15 mm (3.5 x 3.5 x 0.6 in.) |
| Weight | 116 g (0.3 lb) |
