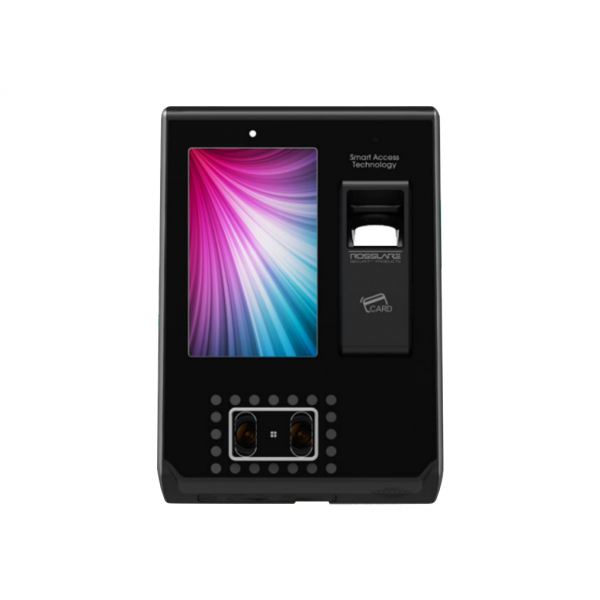

ROSSLARE AY-B9350
Networked Face & Fingerprint Biometric Terminal
with Android Touch LCD and EM/MIFARE RFID
MAIN FEATURES
- Multi-factor Authentication: face, card, fingerprint and pin code
- Advanced optical sensor with fingerprint liveness check algorithms prevent spoofing
- Large capacity for 100,000 templates – 1:Many and support for 1:1 Matching Mode
- High performance CPU and memory for high speed validation (up to 1 second)
- Built-in TCP/IP, RS-485, Wiegand output connectivity
- Dual technology – MIFARE (13.56 MHz) + EM (125 kHz) RFID card reader
- Colored dual camera, for ensuring best face authentication (IR and Visible light cams)
- Non-volatile event log of up to 1,000,000 entries
- Wide thermal operating range (-20°C to 60°C)
- Built-in tamper and buzzer
- Modern design that blends into almost any architectural challenge
SOFTWARE SOLUTION
- AxTraxNG: Easy to install and operate using Rosslare AxTraxNG™ Server for Windows for managing user data and template distribution (many languages)
- RosslareBio 9000: Easy-to-install and operate server for Windows OS that enables managing user data and template distribution. Up to 16 remote client enrollment stations for enterprise applications
SPECIFICATIONS
| FINGERPRINT / FACE IMAGING SYSTEM | |
| Fingerprint Technology | Optical, liveness check, 500 DPI, 20 x 20 mm |
| Face Technology | 2 Cameras (IR+Color), 20 IR LED Illumination: Motor Tilt |
| BIOMETRIC FUNCTIONS | |
| Image/Template Format | ISO 19794-2, ANSI 378, FBI PIV Certified |
| Liveness Detection | Yes |
| FINGERPRINT/FACE TEMPLATES AND PROCESSING TIME | |
| Fingerprint Capacity | 100,000 (2 templates, 1 finger, 50,000 users) |
| RFID Capacity | 100,000 |
| Face Capacity | 10,000 (1:2000) |
| Authentication Speed | Up to 1 second |
| ENVIRONMENTAL RANGE | |
| Temperature Range | 20°C to 60°C |
| Humidity | Up to 90% RH |
| COMMUNICATION AND PERFORMANCE | |
| Card Reader | MIFARE (13.56 MHz) RFID and EM (125 kHz) – Dual Technology |
| CPU | Cortex-A9 Quad Core, 1GHz |
| Memory | 4G + 8G bytes flash, 2GB RAM |
| External SD Card Support | Data backup / FW upgrade |
| Communication | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps) |
| Authentication Method | Fingerprint, RF Card, Face, pin code (or combination) |
| Logs | 1,000,000 event logs, 20,000 image logs |
| LCD & OPERATING SYSTEM | |
| Operating System | Touch Menu System based on Android OS |
| LCD | 5” Touch LCD (480*800) with Android interface |
| LOCK AND I/O | |
| Lock | Deadbolt, EM Lock, Door Strike, Automatic Door |
| I/O | 4 IN (1 exit, 3 monitor) 2 OUT (also for lock control) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 149.5 (W) x 208.5 (H) x 46 (D) mm |
| Weight | 1,100 g (2.42 lbs) |
| POWER SUPPLY REQUIREMENTS | |
| Power | +12 VDC |
