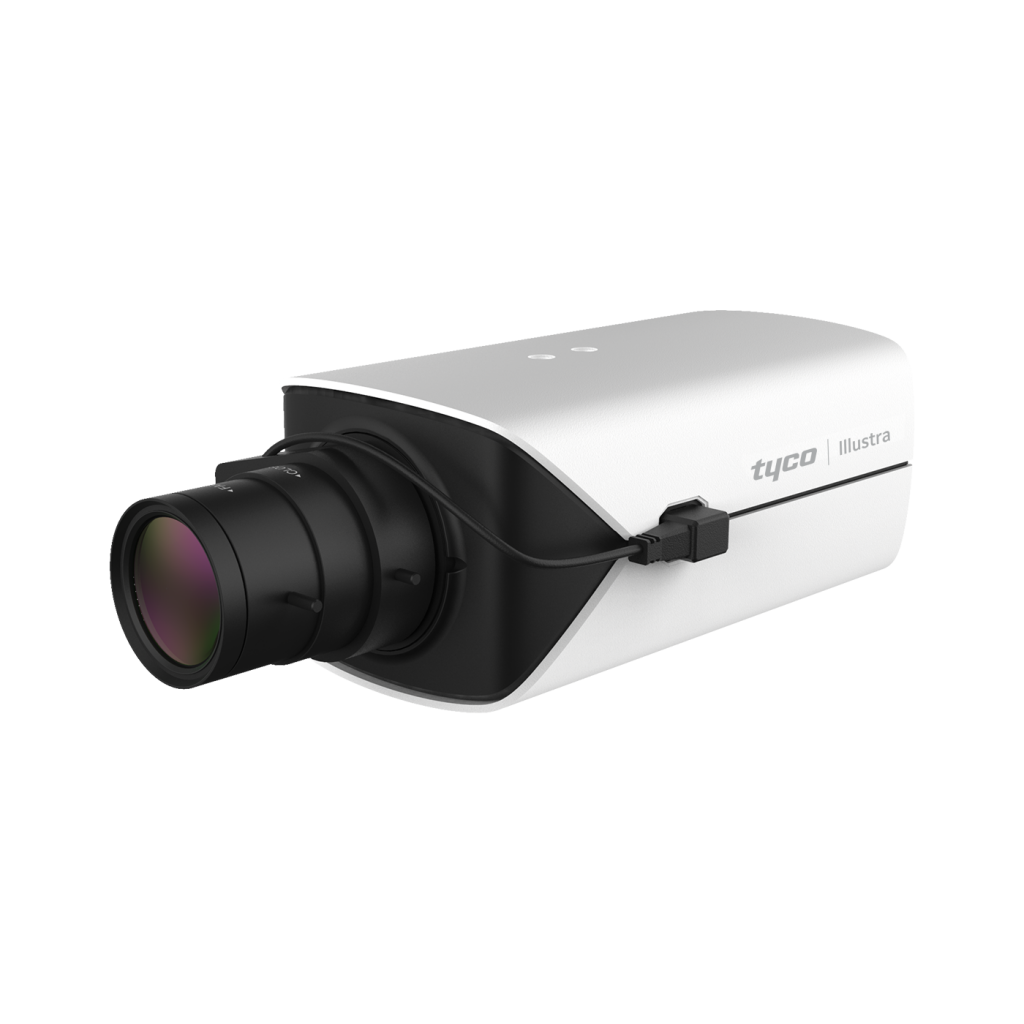

Illustra Standard A Series 4MP Starlight Box
Camera Features
- 120dB Wide Dynamic Range, and True Day/Night provide exceptional video quality in challenging lighting conditions
- Smart codec by Region of Interest reduces storage
- Up to 128GB SD card supports on board storage
- Advanced intelligent video analytics automatically analyses captured video and alert users of specific motion detected activities
- As of August 2020, Illustra Standard cameras support the directives of the National Defence Authorisation Act (NDAA) for sale to U.S. federal and government agencies
Specification
Camera Features | Standard A Series 4MP Starlight Box |
Audio | Bi-directional audio (2-way) |
Alarm Input/Output | Alarm 2 in / 2 out |
API | ONVIF (Profile S/G), HAPI3, iAPI3 |
Backlight Compensation | Yes |
Corridor Mode | Yes |
Cyber Security | HTTPS / IP Filter / IEEE 802.1X /Blacklist & whitelist/account security/telnet access control/serial password |
Day/Night | Yes – IR cut filter with auto switch |
Defog | Yes |
Digital Noise Reduction | 2D/3D DNR |
Dimensions | 142 × 79 × 64 |
Effective Pixels | 2560× 1440 |
Ethernet | RJ45 |
Face Detection | Yes |
H.264 | Yes – Base Line / Main Profile / High Profile |
H.265 | Yes – Main Profile @Leve4.1 High Tier |
Imager | 1 / 1.8″ CMOS |
Image Orientation Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. |
Intelligent Video Analytics | Perimeter Protection:Line crossing, region Entering/Exiting/Intrusion (human/motor vehicle/ non-motor vehicle classification) Target Counting:Line crossing human/motor vehicle/non-motor vehicle counting Exception Detection:Scene change, video blur and video color cast detection Face Detection:Face detection and face capture |
Max Frame Rate | 30fps @ all resolution,60fps @ 1080P |
Minimum Illumination | 0.01 Lux,F1.2,AGC ON |
Motion Detection | Yes |
Multiple Streaming | Main Stream: 60Hz:4MP(1~30fps)/3MP(1~30fps)/1080P(1~60fps)/ 720P(1~30fps) 50Hz:4MP(1~25fps)/3MP(1~25fps)/1080P(1~50fps)/720P(1~25fps) Sub Stream: 60Hz:1080P/720P/D1/CIF /480×240 (1~30fps) 50Hz:1080P/720P/D1/CIF/480×240 (1~25fps) Third Stream: 60Hz : D1( 1 ~ 30fps ) / 480×240( 1 ~ 30fps ) / CIF( 1 ~ 30fps ) 50Hz : D1( 1 ~ 25fps ) / 480×240( 1 ~ 25fps ) / CIF( 1 ~ 25fps ) |
Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
Onboard Storage | Built-in micro SD card slot, up to 128GB |
Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
ONVIF Compliant | Yes |
Power Draw | < 11W |
Power Supply | AC24V/DC12V / PoE |
Privacy Zones | 4 zones video mask |
Remote Monitoring | Webviewer browsing, Holis Pro, Holis Lite, ExacqVision, victor |
Resolution Options | 4MP ( 2560×1440 ) 3MP(2304×1296) 1080P ( 1920×1080 ) 720P ( 1280×720 ) D1 CIF 480×240 |
Shutter Speed | PAL: 1 / 25 s ~ 1 / 100000 s | NTSC: 1 / 30 s ~ 1 / 100000 s |
Simultaneous Users | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Supported Protocols | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
S/N Ratio | ≥52 dB |
Video Streams | Triple streams |
Weight | Approx. 0.65KG |
Wide Dynamic Range | True WDR, 120dB |
