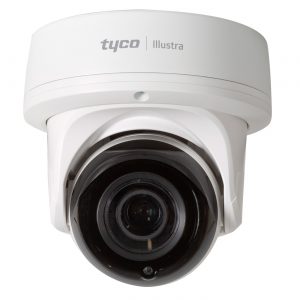

Illustra Pro Gen3 Mini-dome
Pro Gen3 2MP, 3MP, 5MP & 8MP Mini-Domes
Enriched Video Quality With Reduced Configuration Time
Camera Features
- Automatically detects mounting orientation
- Profile settings allow the mini-dome to adapt to scenarios such as retail, gaming, and more
- Demo mode out of the box requires minimal adjustments
- Electronic Image Stabilization keeps the field of view steady in harsh conditions
- Improved accuracy for facial detection with updated library and algorithms
- Equipped with Illustra Video Intelligence Analytics
- Designed to be resilient against cyber-attacks
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Specification
| Camera Features | Illustra Pro Gen3 Mini-dome |
| Alarm Input/Output | – |
| Backlight Compensation | – |
| B/W | – |
| Color | – |
| Corridor Mode | Yes |
| Day/Night | Yes |
| Defog | – |
| Digital Noise Reduction | – |
| Dimensions | – |
| Dynamic Range | 2MP,3MP,8MP: True WDR 120 dB Technologies | 5MP: True WDR 110 dB Technologies |
| Environment Rating | IP66/IP67 |
| Ethernet | – |
| Field of View | 95°/53° (Standard) 49°/28° (Telephoto) 100°/73° (Standard) 32°/24° (Telephoto) |
| Focal Length | 3.6-10mm, 6-22mm, 2.7-13.5mm, 7-22mm |
| Focus | One-Touch Auto Focus or Remote Adjustment |
| Gain Control | – |
| H.264 | Yes |
| H.265 | Yes |
| Horizontal FOV | – |
| Housing Color | White |
| Imager | Progressive Scan RGB CMOS 1/2.8” |
| IntelliZip | Yes |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Manual Speed | – |
| Max Aperture | – |
| Max Frame Rate | 8MP @ 30fps |
| MJPEG | Yes |
| Motion Detection | 3 Zones |
| Noise Reduction | – |
| Onboard Storage | micro SDXC up to 256GB |
| ONVIF Compliant | Profile S |
| Outdoor Rating | – |
| Pan Travel | – |
| Power Draw | – |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC |
| Power Supply | – |
| Presets | – |
| Privacy Zones | – |
| Resolution Options | 8MP, 3MP, 2MP, 1MP, 3840×2160 (4K) 16:9, 3264×1840 16:9, 2688×1520 16:9, 2560×1440 16:9, 1920×1080 (1080p) 16:9, 1664×936 (HD+) 16:9, 1280×720 (720p) 16:9, 1024×576 (PAL+) 16:9, 960×544 (qHD) 16:9, 816×464 16:9, 640×360 (nHD) 16:9, 480×272 16:93MP, 2MP, 1MP, 2048×1536 4:3, 1920×1080, (1080p) 16:9, 1664×936 (HD+) 16:9, 1280×960 4:3, 1280×720, (720p) 16:9, 800×600 (SVGA) 4:3, 640×480 (VGA) 4:3, 640×360 (nHD) 16:9, 480×360 4:3, 384×288 4:3 |
| Shutter Speed | – |
| Supported Protocols | – |
| S/N Ratio | – |
| Tilt Travel | – |
| Vandal-Resistant | IK10 |
| Video Streams | Quad |
| Weight | – |
| White Balance | – |
