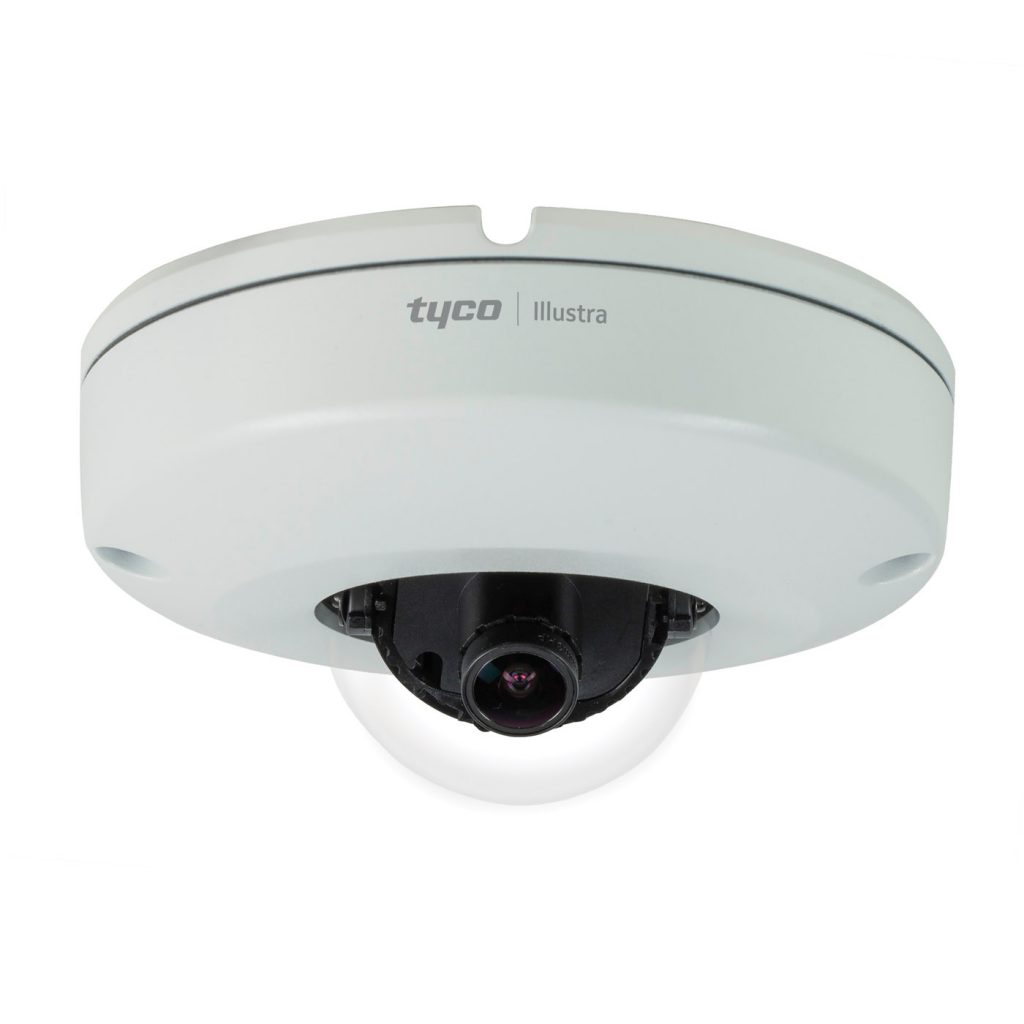

Illustra Pro 2MP Compact Mini-Dome
Stream high-resolution video in challenging environments
Camera Features
- 2MP and 3MP models provide true HD quality images
- VideoEdge® TrickleStor technology for edge-based failover redundancy
- Illustra® IntelliZip offers powerful video compression technology for bandwidth management
- Compact design allows for discreet deployments
- True Wide Dynamic Range balances challenging lighting conditions
- Motion detection for instant intruder alerts
- Corridor Mode for vertical field of view orientation to view hallways or store aisles
- License to a VideoEdge Network Video Recorder at no additional cost
- IP66- and IP67-rated outdoor model enclosure to protect against dust and water damage
- IK10 vandal-resistance rating
- ONVIF Profile S conformant for simplified video streaming integrations
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Specification
| Camera Features | Illustra Pro 2MP Compact Mini-Dome |
| Alarm Input/Output | – |
| Backlight Compensation | – |
| B/W | – |
| Color | – |
| Day/Night | SDN |
| Defog | – |
| Digital Noise Reduction | – |
| Dimensions | – |
| Environment Rating | Indoor & Outdoor |
| Ethernet | – |
| Field of View | 102º/77º |
| Focal Length | 2.8mm |
| Focus | – |
| Gain Control | – |
| H.264 | Yes |
| H.265 | Yes |
| Horizontal FOV | – |
| Housing Color | White |
| Imager | 1/2.8” CMOS |
| IntelliZip | Yes |
| Lens Type | Fixed |
| Manual Speed | – |
| Max Aperture | – |
| Max Frame Rate | 30ips @ 3MP, 60ips @ 1080p |
| Minimum Illumination | – |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Noise Reduction | – |
| Onboard Storage | Micro SDXC Up To 128GB |
| ONVIF Compliant | ONVIF Profile S |
| Outdoor Rating | IP66 and IP67 |
| Pan Travel | – |
| Power Draw | – |
| Power Input | PoE IEEE 802.3af class 2 |
| Power Supply | – |
| Presets | – |
| Privacy Zones | – |
| Resolution Options | 2MP, 1MP, (2048×1536) QXGA, (1920×1080) 1080p, (1664×936), (1280×720) 720p, (1024×576) PAL+, (640×360) nHD, (480×360) 480, (384×288) |
| Shutter Speed | – |
| Supported Protocols | – |
| S/N Ratio | – |
| Tilt Travel | – |
| Vandal-Resistant | IK10 |
| Video Streams | 3 |
| Weight | – |
| White Balance | – |
