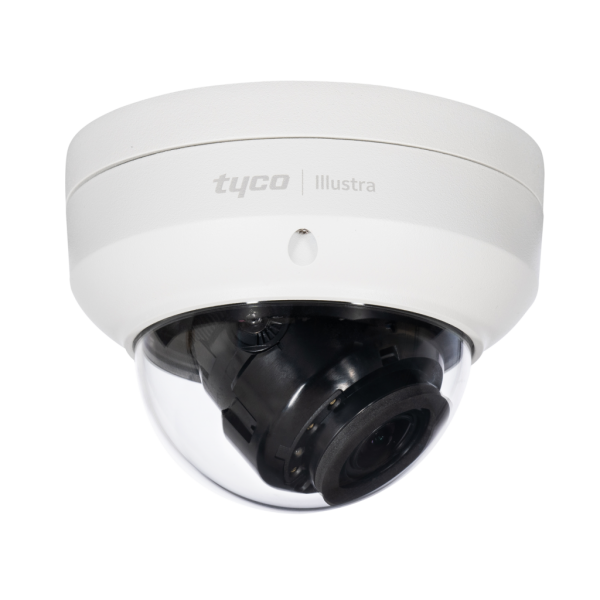

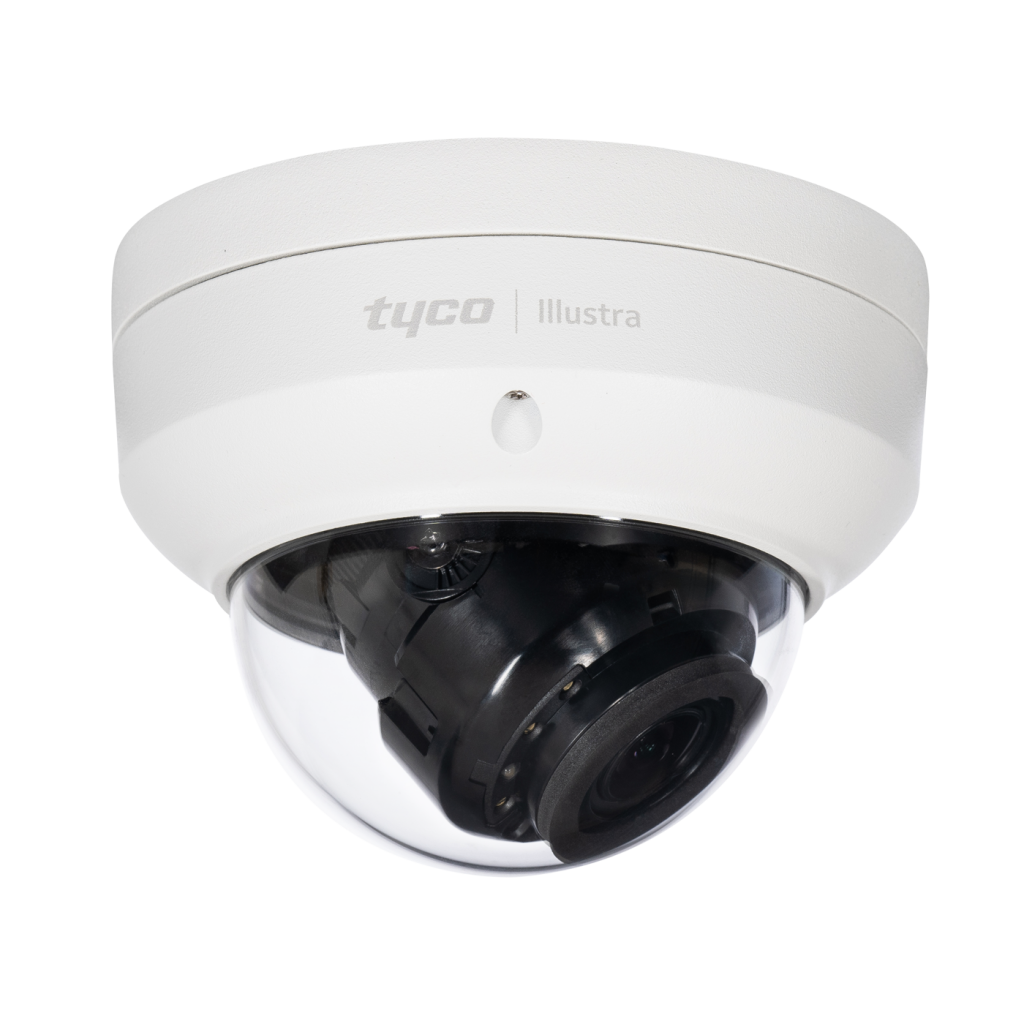

Illustra Flex Gen3 8MP (4K) Outdoor Mini-Dome
Efficiently manage bandwidth resources while streaming high-quality video
Camera Features
- Easy to install with engineer friendly accessories and WiFi configuration
- Built-in tamper detection for scene change, lens obscuration or blinding light.
- Increased IR Distance across the range
- High speed detection with 60FPS in 2MP resolution
- 4K resolution provides true HD quality images with video analytics along with improved WDR
- Equipped with Illustra Video Intelligence Analytics
- VideoEdge® TrickleStor technology for edge-based failover redundancy
- Day/Night functionality allows quality video recording in low light conditions
- Illustra® IntelliZip offers powerful video compression technology for bandwidth management
- Included in the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Specification
Camera Features | Flex Gen3 8MP (4K) Outdoor Mini-Dome |
Audio | Yes, utilising cable accessory |
Alarm Input/Output | One Out/One In, utilising cable accessory |
Corridor Mode | Yes, Mirror & Flip |
Digital Noise Reduction | 2D&3DNR |
Dimensions | 145 x 106.5 mm (5.70 x 4.19 in) |
Ethernet | RJ-45(10/100/1000BASE-T) |
Field of View | Wide Angle: 111.66°/62.53° Telephoto: 46.69°/26.36° |
Focal Length | 4.17 ~ 9.48mm |
Focus | Motorized varifocal, P-Iris |
Focus Control | Simple focus, (software controls: one-touch AF and manual control) |
Gain Control | Automatic & Manual (3dB increments) |
H.264 | Yes |
H.265 | Yes |
Housing Color | White |
Imager | 1/1.8” 8.3MP CMOS |
IntelliZip | Yes |
IR | Adaptive IR |
IR Distance | Up to 40m (131.23ft) |
Lens Type | Varifocal |
Max Frame Rate | 60fps |
MJPEG | Yes |
Motion Detection | Yes, 3 Zones |
Onboard Storage | Micro SD/SDHC/SDXC 1slot 512GB |
ONVIF Compliant | Profile S |
Operating Temperature | -40°C ~ +50°C (-40°F ~ +122°F) Up to 5 concurrent hours at up to 60°C |
Outdoor Rating | IP67 |
Power Draw | 24 VAC: Max 14.0W PoE: Max 12.95W |
Power Input | 24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1) |
Privacy Zones | 9 |
Resolution Options | 3840×2160/ 3264×1840/ 2688×1520/ 1920×1080/ 1664×936/ 1280×720/ 1024×576/ 960×544/ 816×464/ 640×360/ 480×272 |
Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP |
S/N Ratio | 50db |
Vandal-Resistant | IK10 |
Video Streams | 3 |
White Balance | Automatic Wide, Automatic Normal (Default), Manual |
Wide Dynamic Range | True WDR 120db Technologies |
