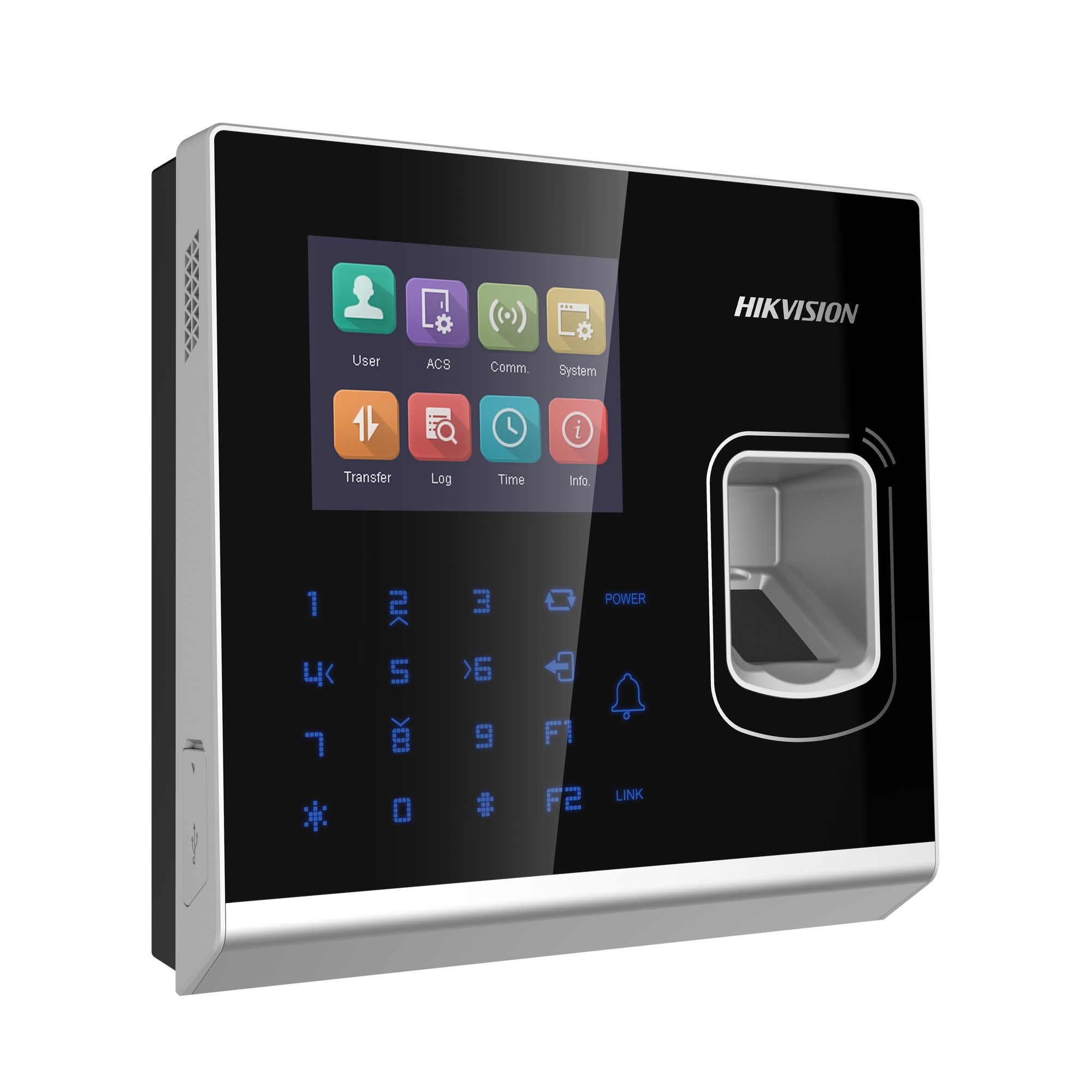

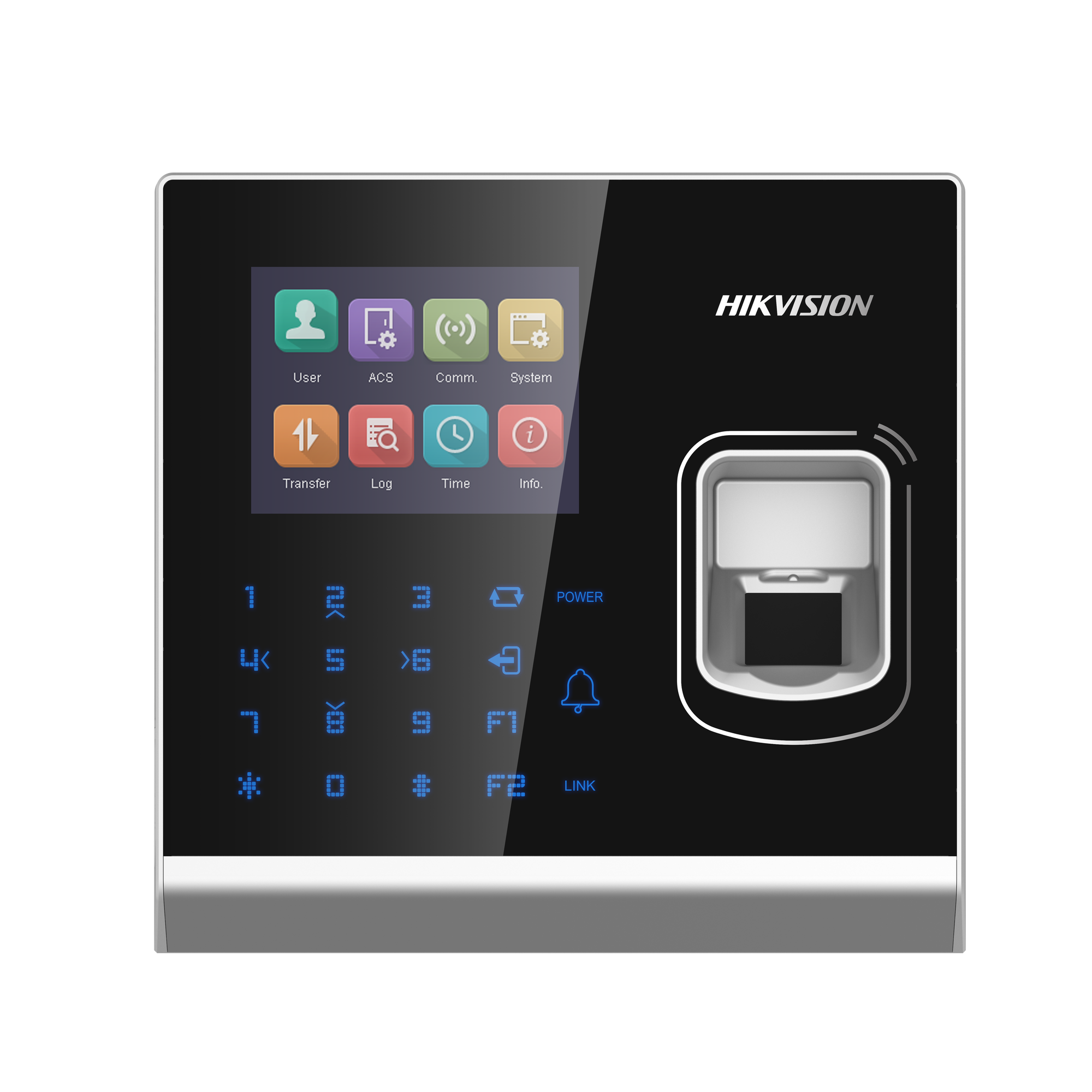

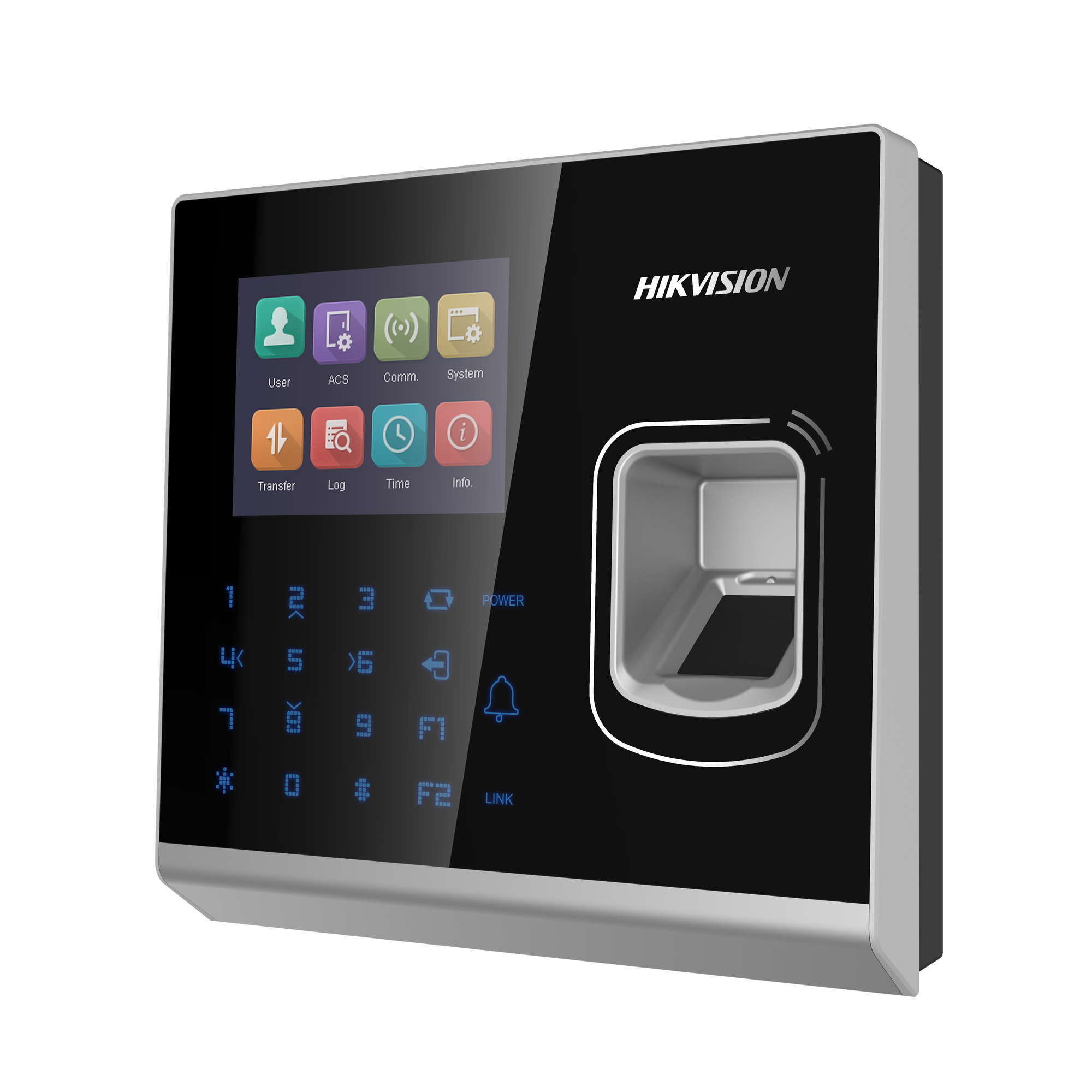

HIKVISION DS-K1T201AMF Pro Series Fingerprint Terminal

描述

Pro Series Fingerprint Terminal

  • Fingerprint Access Control Terminal
  • 2.8-inch LCD display screen
  • 5000 fingerprints, 100,000 cards(Mifare card), 300,000 events storage
  • Communication via TCP/TP and Wi-Fi
  • RS-485 and Wiegand interface
  • ISUP5.0、ISAPI



Specification



Display

  • Screen Size : 2.8-inch
  • Type : Display screen



Network

  • Wired Network : 100 M/1000 M self-adaptive
  • Wi-Fi : Support, 2.4 G



Interface

  • Network Interface : 1
  • Lock Control : 1
  • Exit Button : 1
  • Door Contact Input : 1
  • Alarm Input : 2
  • Alarm Output : 1
  • TAMPER : 1
  • RS-485 : 1
  • Wiegand : 1
  • USB : 1



Authentication

  • Card Reading Frequency : 13.56 MHz



General

  • Power Supply : 12 VDC/2 A
  • Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity : 10% to 90%
  • Dimensions : 137 mm x 142 mm x 35 mm (5.4″ × 5.6″ × 1.4″)
