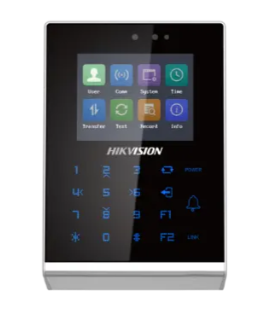

Pro Series Card Terminal
- IP addresses conflicted alarm
- Supports uploading real-time events
- Gets offline events: Avoids events losing
- Touch mode and blue light display technique for keypad
- Stand-alone settings for the terminal
- 2.8-inch LCD display screen to display the time, the date, etc.
- Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
- Communication via wired network (TCP/TP) and Wi-Fi
- Supports ISUP5.0 protocol for public network communication
- Supports multiple door opening modes (card, card + password, exit button, etc.)
- Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
- Applies authentications from the client to the device
- Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
- Supports EM card reading
- Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm, and duress card alarm
- Creates dismiss code for dismiss alarm
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Data can be permanently saved after power-off
Specification
Display
- Screen Size : 2.8-inch
- Type : Display screen
Network
- Wired Network : 100 M/1000 M self-adaptive
- Wi-Fi : Support, 2.4 G
Interface
- Network Interface : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 2
- Alarm Output : 1
- TAMPER : 1
- RS-485 : 1
- Wiegand : 1
- USB : 1
Authentication
- Card Reading Frequency : 125 KHz
General
- Power Supply : 12 VDC/2 A
- Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity : 10% to 90%
- Dimensions : 137 mm x 142 mm x 35 mm (5.4″ × 5.6″ × 1.4″)
