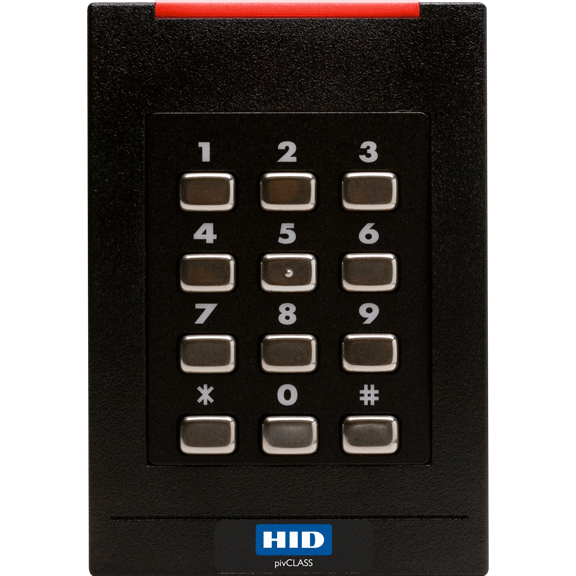

HID pivCLASS RK40
Wall switch with keypad pivCLASS reader, designed to support PIN match at panel
HID Global’s pivCLASS RK40 wall switch with keypad contactless reader is suitable for use in security areas meeting the FIPS-201 criteria for “Controlled” access and is intended to support the use of a personal identification number (PIN) entered via a keypad and sent directly to a panel or door controller (PIN matched at panel, not on card). The pivCLASS RK40 supports reading any PIV-based card with a contactless interface and containing a Card Authentication Key (CAK) certificate when used in combination with HID Global’s pivCLASS Authentication Module (PAM) or pivCLASS Embedded Authentication.
Key Features:
- Capable of PIN matching at the panel
- Supports reading non FIPS-201 credentials such as iCLASS, iCLASS SE, Seos and standard Prox
- TAA Certified, FICAM APL
SPECIFICATIONS
Typical Maximum Read Range*
- Up to 2” for ISO14443 A cards
Dimensions:
- 3.3” x 4.8” x 1.1” (8.5 x 12.2 x 2.8 cm)
Legacy cards supported:
- Proximity: HID Prox, AWID and EM4102
13.56 MHz contactless smart cards supported:
- PKI-based FIPS 201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC
- iCLASS SE, iCLASS SR, standard iCLASS, SE for MIFARE Classic, SE for MIFARE DESFire EV1
Supported outputs in Wiegand mode:
- 40 bits
- 64 bits
- 75 bit GSA
- 128 bit UUIDs
- 200 bits full FASCN
Protocol:
- Wiegand mode – Wiegand
- PAM mode – HID Global pivCLASS protocol or CoreStreet Reader Protocol
Warranty:
- Lifetime * Depending upon environmental factors
