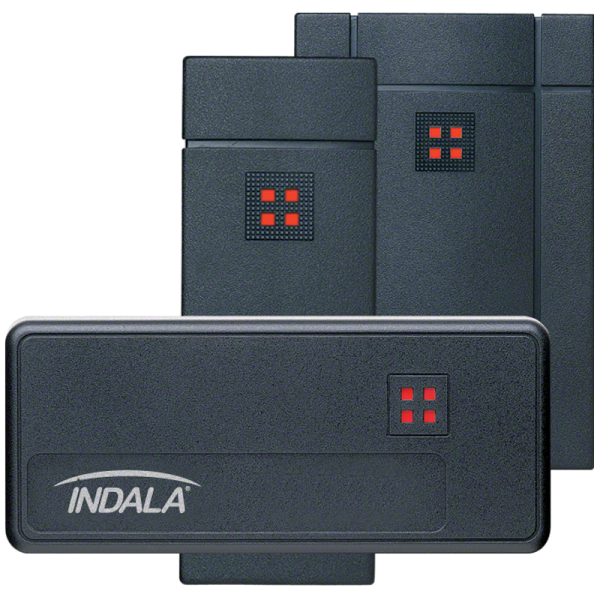

HID Indala Proximity Classic Readers 603
125kHz Proximity Mullion or Wall Switch
The Indala® 125 kHz Standard product line is part of HID’s latest line of highly-secure proximity readers. With a read range of up to five inches, Indala Standard Proximity readers are suitable for a variety of applications. These high-quality Indala Proximity Readers deliver outstanding and consistent performance with intelligent programming technology, uniform core modules, and a range of stylish bezel designs including Curve, Arch, Linear, and Wave in a variety of colors. All Indala Standard Proximity readers are available in three popular form factors: Classic, Mullion (Slim) and Wallswitch for the ultimate choice.
Exclusive FlexSecur® Security Technology.
All HID Indala 125 kHz Proximity Readers feature FlexSecur technology, which provides an added level of access system security through a verification process at the reader. A feature unique to the HID Indala product line, FlexSecur screens out unauthorized cards prior to sending access control data to the host system.
- Indala FlexSecur® Technology for the Industry’s Most Secure Proximity Readers – Exclusive Indala FlexSecur® Password-Protected Security between card and reader screens out unauthorized cards prior to sending access control data to the host system.
- Superior Format Control for the Most Application Choices – Requirement – The HID Indala Proximity portfolio includes classic, mullion/slim, wallswitch, mid-range, long-range, and heavy-duty keypad readers for every application.
Key Features
Classic Reader:
- Uniquely designed to replace a Wiegand Reader.
- Dimensions are the same as the Classic Wiegand Swipe reader. Mounting holes match.
- Ideal for transitioning existing Wiegand users to proximity.
Mullion (Slim) Reader:
- Can be mounted on any wall where limited space is an issue or where a slim, modern look is preferred to a wallswitch-size reader.
- Ideal for mounting on door frames.
- Suitable for indoor or outdoor use.
Wallswitch Reader:
- The Wallswitch reader is similar in size to most U.S. switch plates.
- Wallswitch reader can be mounted on a single gang box.
- Suitable for indoor or outdoor use.
SPECIFICATIONS
Classic / Mullion (Slim) / Wallswitch:
Read Ranges*
Up to 5″ (12 cm)
*Depending on installation conditions
Dimensions
Classic: 2.3″H x 5.3″W x 0.8″T (5.8 x 13.5 x 2.0 cm)
Mullion:
Wave – 5.5″H x 1.7″W x 1.1″T (14.0 x 4.3 x 2.8 cm)
Curve – 4.9″H x 1.7″W x 1.1″T (12.4 x 4.3 x 2.8 cm)
Arch – 4.5″H x 1.7″W x 0.8″T (11.4 x 4.3 x 2.0 cm)
Linear – 5.5″H x 1.7″W x 0.8″T (14.0 x 4.3 x 2.0 cm)
Wall Swtich:
Wave – 5.5″H x 3.3″W x 1.1″T (14.0 x 8.4 x 2.8 cm)
Curve – 5.0″H x 3.8″W x 1.1″T (12.7 x 9.6 x 2.8 cm)
Arch – 4.5″H x 3.0″W x 0.8″T (11.4 x 7.6 x 2.0 cm)
Linear – 4.6″H x 3.0″W x 0.9″T (11.7 x 7.6 x 2.3 cm)
Power Supply 4-16 VDC
Current Requirements 65 mA
Operating Temperature -31 to 149ºF (-35 to 65ºC)
Operating Humidity 0-95% RH, non-condensing
Certifications
UL294/cUL, FCC (US), Canada, CE Mark (Europe), Australia C-Tick, New Zealand EMC
