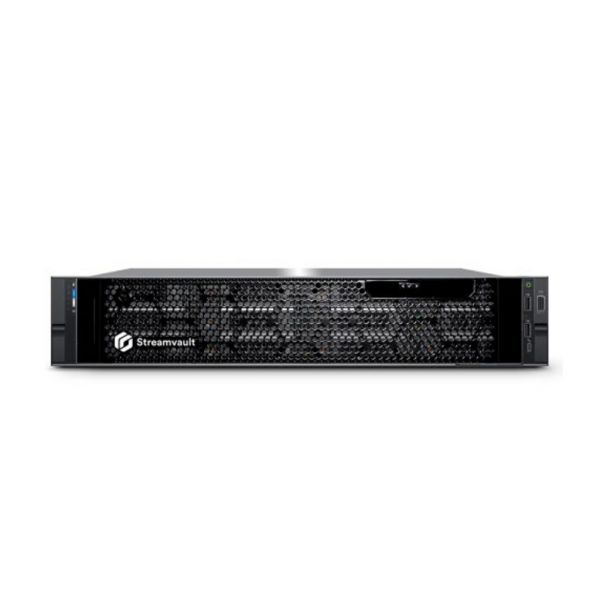

Genetec Streamvault SV-2000E
Turnkey security appliance
Technical specifications
OS
Windows Server 2022
Processor
SV-2030E-R4/R6S:
Intel® Xeon® E-2336
Passmark: 17,162
SV-2040E-R12:
1x Intel® Xeon® Silver 4410Y 2.0GHz
Passmark: 29,585
SV-2040E-R28:
1x Intel® Xeon® Gold 5416S 2.0GHz
Passmark: 36,391
Memory
SV-2030E-R4/R6S: 16GB DDR4
SV-2040E-R12/R28: 32GB DDR5
Ethernet
SV-2030E-R4/R6S: 2x 1GbE RJ45
SV-2040E-R12/R28: 2x 1GbE RJ45
Peripherals
1x USB 2.0 + 1x USB 3.0
Video output
SV-2030E-R4/R6S/R12:
1x VGA front, 1 VGA rear
SV-2040E-R28: 1 VGA rear
Integrated Dell Remote Access Controller
iDRAC9 Enterprise
Performance
SV-2030E-R4/R6S: 465 Mbps / 300
cameras
SV-2040E-R12: 670 Mbps / 300 cameras
SV-2040E-R28: 670 Mbps / 500 cameras
Mechanical and environmental
Operating temperature
50°F to 95°F (10°C to 35°C)
Operating humidity
8 – 80% (non-condensing)
Compliance standards
IEC 60950-1, European Norm EN 60950-1, CISPR 22/CISPR 24, EN55022/55024
Expansion
SV-2030E-R4/R6S:
1x PCIe x8 (LP) and 1x PCIe x16 (FH)
SV-2040E-R12/R28: Up to 2x LP
Storage
Drive type
SV-2030E-R4/R6S: Hot-swap 3.5”
SV-2040E-R12/R28: Enterprise HDD
OS drive
SV-2030E-R4:
2x 240GB SSD (RAID 1)
SV-2030E-R6S:
2x 480GB SSD (RAID 1)
SV-2040E-R12/R28:
2x 480GB M.2 NVMe (Hot Swappable)
Available drive sizes
4TB, 8TB, 12TB, 16TB, 20TB
RAID controller
SV-2030E-R4: H755 8GB NV cache
SV-2030E-R6S: H355
SV-2040E-R12: H755 8GB NV cache
SV-2040E-R28: H965i 8GB NV cache
Data RAID level
SV-2030E-R4/R6S: RAID 5; RAID 6 or RAID
10 available as options
SV-2040E-R12: RAID 5/6 or
RAID 10 available as an option
SV-2040E-R28: RAID 6 or RAID 6 + 1 hot
spare, RAID 10 available as an option
Maximum data storage
SV-2040E-R12: 240TB (raw); 218,3 TB
(usable)
SV-2040E-R28: 560TB (raw); 509,3TB
(usable)
