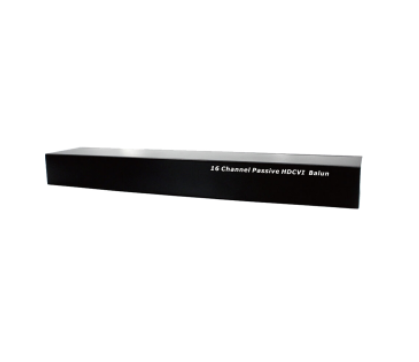

DAHUA PFM809-4MP
16 Channel Passive HDCVI Balun
>Power supply: No need additional power supply.
>Transmission effect: Real-time transmission HDCVI/AHD/TVI/CVBS video signal without compression, video is clear and stable.
>Transmission distance: 0~400m (with passive transmitter).
>Main functions: Use 4 wires meanwhile to transmit 16-ch video signal.
>Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
>Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface.
>Transmission effect: Real-time transmission HDCVI/AHD/TVI/CVBS video signal without compression, video is clear and stable.
>Transmission distance: 0~400m (with passive transmitter).
>Main functions: Use 4 wires meanwhile to transmit 16-ch video signal.
>Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
>Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface.
Specifications
| Model | PFM809-4MP |
| Properties | |
| Transmission Signal | 16 channel |
| Transmission Distance | HDCVI: 720P: max.400m(1312.34ft); 1080P: max. 250m(820.21ft); 4MP: max. 200m(656.17ft) |
| Category Type | UTP CAT5E/6 |
| Video Transmission Properties And Port | |
| Coaxial Video Connector | BNC |
| Connection Way | Spring loaded |
| Compatible Format | HDCVI/AHD/TVI/CVBS |
| Resolution | 720P/1080P/4MP |
| Anti-interference | ＞60db |
| Protection | |
| ESD | 1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 | |
| Per: IEC61000-4-2 | |
| Coaxial Cable Connector | 2KV(common-code) |
| Per: IEC61000-4-5 | |
| UTP Cable Connector | 2KV(different-code), 4KV(common-code) |
| Per: IEC61000-4-5 | |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Dimension(L*W*H) | 430mm*100mm*44.5mm(1U) (16.93”x3.94”x1.75”) |
| Shell | SECC |
| Color | Black |
| N.W. | 1.25kg(2.76lb) |
| Stability | |
| MTBF | >10000H |
| Environmental | |
| Operating Temperature | -10℃~+55℃(14℉~131℉) |
| Storage Temperature | -20℃~+70℃(-4℉~158℉) |
| Humidity | 0~95%(non-condensing) |
| Certification | |
| Certification | CE, FCC |
