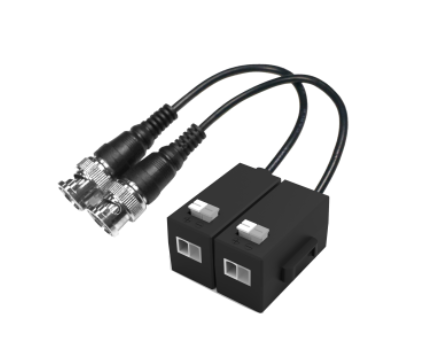

DAHUA PFM800-E
1 Channel Passive HDCVI Balun
>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.
Specifications
| Model | PFM800-E |
| Properties | |
| Transmission Signal | 1 channel |
| Transmission Distance | HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft) |
| Category Type | UTP CAT 5E/6 |
| Video Transmission Properties And Port | |
| Coaxial Video Connector | BNC-M |
| Twisted-pair Video Connector | Push-terminal |
| Compatible Format | HDCVI/AHD/TVI/CVBS |
| Resolution | 720P/1080P |
| Anti-interference | ＞60db |
| Protection | |
| ESD | 1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 | |
| Per: IEC61000-4-2 | |
| Coaxial Cable Connector | 2KV(common-code) Per: IEC1000-4-5 |
| UTP Cable Connector | 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Dimension(L*W*H) | 180mm*19mm*16mm(7.09”x0.75”x0.63”) |
| Shell | ABS |
| Color | Black |
| N.W. | 42g/pair (0.09lb) |
| Stability | |
| MTBF | ＞10000h |
| Environmental | |
| Operating Temperature | -10℃~+55℃(14℉~131℉) |
| Storage Temperature | -20℃~+70℃(-4℉~158℉) |
| Humidity | 0~95%(non-condensing) |
