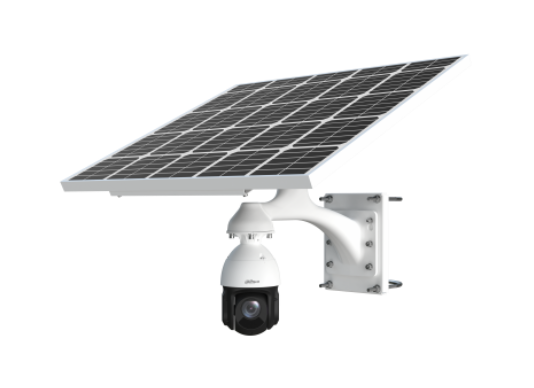

DAHUA KITDH-PFM378-B125-CBDH-SD49425DB-HNY-GQ-LA

Integrated Solar Monitoring System(Without Lithium Battery)

> Angle flexible adjustment of solar panel and camera mount.

> 125 W Monocrystalline solar panel.

> Aluminum alloy frame.

> Built sturdy to resist storms with sustained winds up to 117 km/h. (Note: The following four functions are only supported when battery power is used.)

> Remote monitoring available through the mobile app.

> Maximum Power Point Tracking (MPPT) charging controller.

> RS-485 communication.

> Electric protection.

> 1/2.8″ 4Megapixel STARVIS™ CMOS.

> 25x optical zoom.

> Starlight technology.

> Max. 25/30fps@4M.

> IR distance up to 100 m.

> Perimeter protection.

> Face detection.

> SMD 3.0.

> IP66 rated.

> 4G.



Specifications

Integrated Solar Power System (Without Lithium Battery)
ModelDH-PFM378-B125-CB
Solar Panel
TypeMonocrystalline silicon
Max. Power125 W
Output Voltage18.8 VDC
Solar Cell Efficiency0.21
Max. Mechanical Load5400 Pa
Controller
TypeMPPT
Operating Voltage12 VDC
Rated Charging Current10 A
Rated discharge Current10 A
MPPT Tracking Efficiency≥99%
Communication ModeRS-485
Operating Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Rated Charging Power125 W
Over-discharge Protection Voltage11.1 VDC
OthersOver-temperature, over-discharge, over-voltage and low-temperature protection of battery; overload and short circuit protection of load.
Port
Power OutputΦ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22″ × Φ0.08″ × 0.47″)
RS–485Red: RS-485-A
Black: RS-485-B
Output PortCSA authorized M15 2-core waterproof connector (connected to lithium battery)
RS-4851 (baud rate: 1200 bps–9600 bps)
Alarm LinkageCapture; recording; send email; preset; pattern; tour; alarm digital input
Alarm EventMotion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O2/1
Audio I/O1/1
General
Main Body MaterialQ235 steel/aluminum
IP RatingIP65
InstallationPole mount, Φ80 mm–Φ150 mm
Adjustable AngleSolar panel: H: 360°, V: 10°/20°/30°/40°/50°
Product Dimensions875 mm × 761.9 mm × 951.9 mm (34.45″ × 30.00″ × 37.48″)
Packaging Dimensions930 mm × 825 mm × 275 mm (36.61″ × 32.48″ × 10.83″)
Packaging Method1 pc in each carton
Net Weight20.1 kg (44.31 lb)
Gross Weight26 kg (57.32 lb)
Environment
Operating Altitude<3,000 m (9,842.5 ft)
Applicable AreaAreas with daily exposure to solar radiation for more than 3.5 hours
Operating Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity<95% (RH)
Storage Temperature0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity<95% (RH)
Operating Temperature–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity≤95%
ProtectionIP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
Certifications
CertificationsCE: EN 55032:2015+A11:2020, EN 55030-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55035:2017+A11:2020
FCC: 47 CFR Part 15, Subpart B
UKCA: EN 55032:2015+A11:2020, EN 55030-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55035:2017+A11:2020
Camera
ModelDH-SD49425DB-HNY-GQ-LA
Image Sensor1/2.8″ CMOS
Pixel4 MP
Max. Resolution2560 (H) × 1440 (V)
ROM256 MB
RAM512 MB
Electronic Shutter Speed1/1 s–1/30,000 s
Scanning SystemProgressive
Min. IlluminationColor: 0.005 lux@F1.6;
B/W: 0.0005 lux@F1.6;
0 lux (illuminator on)
Illumination Distance100 m (328.08 ft) (IR)
Illuminator On/Off ControlZoom Prio; Manual; Auto; Off
Illuminator Number3 (IR)
Lens
Focal Length5 mm–125 mm
Max. ApertureF1.6–F3.6
Field of ViewH: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
Optical Zoom25×
Focus ControlAuto; semi-auto; manual
Close Focus Distance0.1 m–0.5 m (0.33 ft–1.64 ft)
Iris ControlAuto; manual
DORI DistanceDetectObserveRecognizeIdentify
2,500 m (8208.10 ft)987.5 m

(3239.83 ft)

500 m

(1640.42 ft)

250 m

(820.21 ft)

PTZ
Pan/Tilt RangePan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180°
Manual Control SpeedPan: 0.1°/s–80°/s;
Tilt: 0.1°/s–80°/s
Preset SpeedPan: 80°/s;
Tilt: 80°/s
Preset300
Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Power-off MemoryYes
Idle MotionPattern; Preset; Scan; Tour
PTZ ProtocolDH-SD Pelco-P/D (Auto recognition)
Intelligence
IVS (Perimeter Protection)Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face DetectionSupports face detection, capturing snapshots, and enhancing face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing and quality first.
SMDYes
Video
Video CompressionH.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Streaming Capability3 streams
Resolution4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)
Video Frame RateMain stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Sub stream 2: 720p@(1–25/30 fps)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 2816 Kbps–13056 Kbps
H.265: 1024 Kbps–7936 Kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
WDR120 dB
HLCYes
White BalanceAuto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain ControlAuto; manual
Noise Reduction2D NR; 3D NR
Motion DetectionYes
Region of Interest (RoI)Yes
Image StabilizationElectronic (EIS)
DefogElectronic
Digital Zoom16 ×
Image Rotation180°
Privacy MaskingUp to 24 areas can be set, with up to 8 areas in the same view; multiple colors available
S/N Ratio≥55 dB
Audio
Audio CompressionG.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Network
Network PortRJ-45 (10/100 Base-T)
Carrier Network System4G; 3G; 2G
Wireless Carrier Frequency BandLTE-TDD: Dual-band Band 38/40
LTE-FDD: Eleven-band Band 1/2/3/4/5/7/8/28/12/17/66
WCDMA: Hexa-band Band1/2/3/4/5/8
GSM: Quad-band Band 1/3/5/8
Network ProtocolFTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
InteroperabilityCGI; SDK; ONVIF (Profile S&G&T)
Streaming MethodUnicast/Multicast
User/Host20 (total bandwidth: 64 M)
StorageFTP; Micro SD card (512 GB); NAS
Management SoftwareDSS; DMSS; NVR; Smart PSS; IVSS
Mobile ClientiOS; Android
BrowserIE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Audio Input1 channel
Audio Output1 channel
Certification
CertificationsCE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
Power
Power Supply12 VDC, 3 A (–10% to +25%)
Power ConsumptionDeep sleep: 0.05 W
light sleep: 2.5 W
Basic: 3.75 W (not pulling stream in 4G); 4.54 W (pulling stream in 4G); 7.98 W (illuminator + not pulling stream in 4G); 8.77 W (illuminator + pulling stream in 4G)
Max: 15.49 W (illuminator + PTZ + pulling stream in 4G)
Structure
Product Dimensions270.4 mm × Φ160 mm (10.65″ × Φ6.30″)
Net Weight2.6 kg (5.73 lb)
Gross Weight4.2 kg (9.26 lb)
