DAHUA KIT/DH-PFM378-B125-CB/DH-SD49425DB-HNY-GQ-EAU

描述

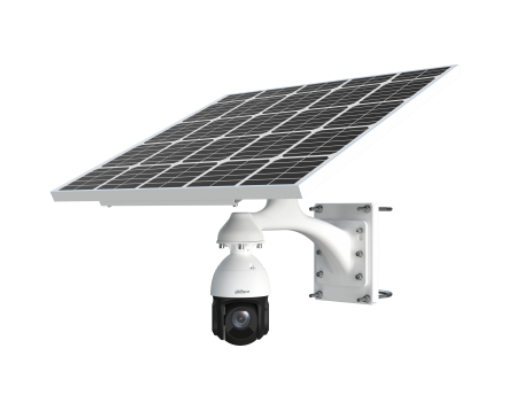

DAHUA KIT/DH-PFM378-B125-CB/DH-SD49425DB-HNY-GQ-EAU

Integrated Solar Monitoring System(Without Lithium Battery)

> Angle flexible adjustment of solar panel and camera mount.

> 125 W Monocrystalline solar panel.

> Aluminum alloy frame.

> Built sturdy to resist storms with sustained winds up to 117 km/h. (Note: The following four functions are only supported when battery power is used.)

> Remote monitoring available through the mobile app.

> Maximum Power Point Tracking (MPPT) charging controller.

> RS-485 communication.

> Electric protection.

> 1/2.8″ 4Megapixel STARVIS CMOS.

> 25x optical zoom.

> Starlight technology.

> Max. 25/30fps@4M.

> IR distance up to 100 m.

> Perimeter protection.

> Face detection.

> SMD 3.0.

> IP66 rated.

> 4G.

Specifications

Integrated Solar Power System (Without Lithium Battery)

Model

DH-PFM378-B125-CB

Solar Panel

Type

Monocrystalline silicon

Max. Power

125 W

Output Voltage

18.8 VDC

Solar Cell Efficiency

0.21

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

≥ 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

125 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature, over-discharge, over-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22″ × Φ0.08″ × 0.47″)

RS–485

Red: RS-485-A
Black: RS-485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Alarm Linkage

Capture; recording; send email; preset; pattern; tour; alarm digital input

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

General

Main Body Material

Q235 steel/aluminum

IP Rating

IP65

Installation

Pole mount, Φ80 mm–Φ150 mm

Adjustable Angle

Solar panel: H: 360°, V: 10°/20°/30°/40°/50°

Product Dimensions

875 mm × 761.9 mm × 951.9 mm (34.45″ × 30.00″ × 37.48″)

Packaging Dimensions

930 mm × 825 mm × 275 mm (36.61″ × 32.48″ × 10.83″)

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

26 kg (57.32 lb)

Environment

Operating Altitude

< 3,000 m (9,842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

< 95% (RH)

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Certifications

Certifications

CE: EN 55032:2015+A11:2020, EN 55030-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55035:2017+A11:2020
FCC: 47 CFR Part 15, Subpart B
UKCA: EN 55032:2015+A11:2020, EN 55030-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55035:2017+A11:2020

Camera

Model

DH-SD49425DB-HNY-GQ-EAU

Image Sensor

1/2.8″ CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

256 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6;
B/W:0.0005 lux@F1.6;
0 lux (illuminator on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

3 (IR)

Lens

Focal Length

5 mm–125 mm

Max. Aperture

F1.6–F3.6

Field of View

H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

2,500 m (8208.10 ft)

987.5 m

(3239.83 ft)

500 m

(1640.42 ft)

250 m

(820.21 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–80°/s;
Tilt: 0.1°/s–80°/s

Preset Speed

Pan: 80°/s;
Tilt: 80°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, capturing snapshots, and enhancing face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing and quality first.

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Sub stream 2: 720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 2,816 Kbps–13,056 Kbps
H.265: 1,024 Kbps–7,936 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16 ×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Carrier Network System

4G; 3G; 2G

Wireless Carrier Frequency Band

LTE-TDD: Dual-band Band 38/40
LTE-FDD: Hepta -band Band 1/3/5/7/8/20/28
WCDMA: Tri-band Band 1/5/8
GSM: Tri-band Band 850/900/1800

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Management Software

DSS; DMSS; NVR; Smart PSS; IVSS

Mobile Client

iOS; Android

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Audio Input

1 channel

Audio Output

1 channel

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Power

Power Supply

12 VDC, 3 A (–10% to +25%)

Power Consumption

Deep sleep: 0.05 W
light sleep: 2.5 W
Basic: 3.75 W (not pulling stream in 4G); 4.54 W (pulling stream in 4G); 7.98 W (illuminator + not pulling stream in 4G); 8.77 W (illuminator + pulling stream in 4G)
Max: 15.49 W (illuminator + PTZ + pulling stream in 4G)

Structure

Product Dimensions

270.4mm × Φ160 mm (10.65″ × Φ6.30″)

Net Weight

2.6 kg (5.73 lb)

Gross Weight

4.2 kg (9.26 lb)
