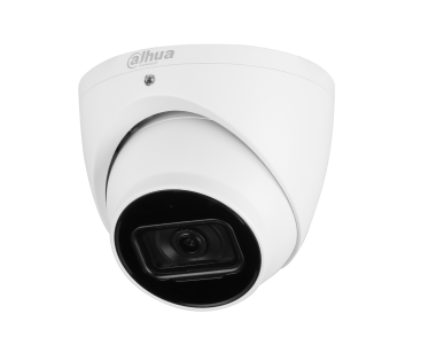

DAHUA HAC-HDW1801T(-A)

Camera

Pixel

8 MP

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s

NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 88°; V: 46°; D: 105°

6 mm H: 55°; V: 31°; D: 62°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)

3.6 mm: 1.9 m (6.23 ft)

6 mm: 3.5 m (11.48 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88 m

(288.71 ft)

35.2 m

(115.49 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

3.6 mm

106.7 m

(350.07 ft)

42.7 m

(140.09 ft)

21.3 m

(69.88 ft)

10.7 m

(35.10 ft)

6 mm

154.7 m

(507.55 ft)

61.9m

(203.08 ft)

30.9 m

(101.38 ft)

15.5 m

(50.85 ft)

Video

Video Frame Rate

CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
TVI:
PAL: 4K@15 fps
NTSC: 4K@15 fps
AHD:
PAL: 4K@15 fps
NTSC: 4K@15 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart Illumination

Smart IR

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

φ106.0 mm × 93.6 mm (φ4.17″ × 3.69″)

Packaging Dimensions

147 mm × 138 mm × 135 mm (5.79″ × 5.43″ × 5.31″)

Net Weight

0.50 kg (1.10 lb)

Gross Weight

0.62 kg (1.37 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
