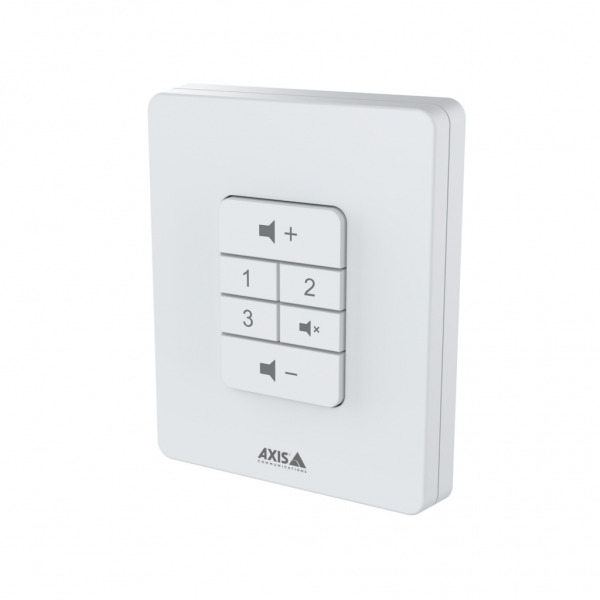

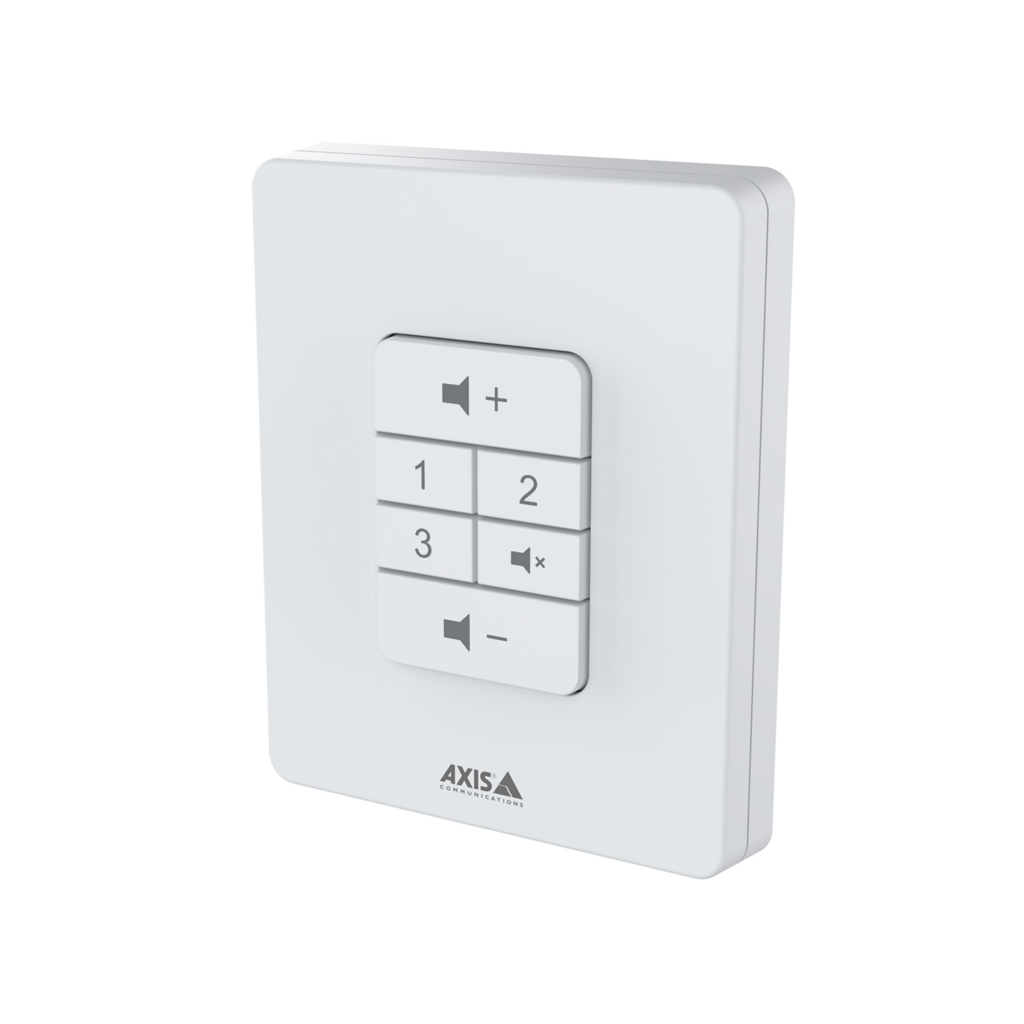

AXIS C8310
Volume Controller
Feautres
- Easy touch network volume adjustment
- 3 preconfigured audio sources
- Tactile and visual selection feedback
- I/O port connection
Technical specifications
| Audio management | AXIS C8310 is assigned to music zones in AXIS Audio Manager Edge for controlling volume and source selection. Allowed sources and volume range is controlled by the management software. |
| Supported devices | The unit can be connected to any Axis network audio product with an I/O connector and firmware 11.6 or later. |
| Casing | IP42-rated Plastic Color: White NCS S 1002-B |
| Keypad | Tactile backlit buttons: volume (+/-), mute, source selection (1, 2 and 3) |
| LED indicators | Visual feedback when a button is pressed. Status indication for selected audio source and mute button |
| Mounting option | Wall-mounted Recessed-mounted in single gangbox or I/O connection box |
| Power | Power is supplied from the device that the AXIS C8310 is connected to (12 V DC, max 0.6 W) |
| Connectors | 4-pin 2.5 mm terminal block (connected to a network audio device) |
| Operating conditions | 0 °C to 50 °C (32 °F to 122 °F) Humidity 10–85% RH (condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | H x D x W: 114 x 15 x 93 mm (4.5 x 0.59 x 3.7 in) |
| Weight | Without frame: 71 g (0.16 lb) With frame: 86 g (0.19 lb) |
| Reliability | Designed for 24/7 operation. |
