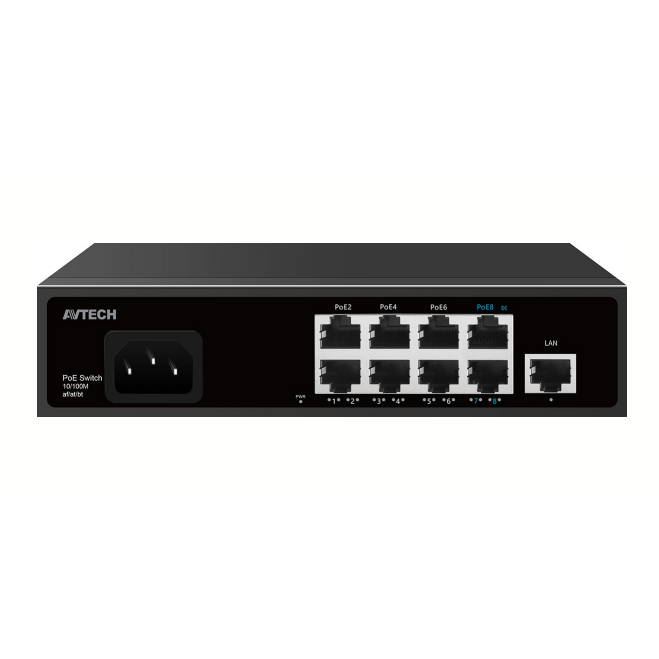

AVTECH DGS8100PE
8xFE (PoE) + 1xFE (UP-LINK) PoE Switch
FEATURES
- AI Watchdog Function
- 6KV Lightning & 8KV ESD Protection
- bt 60W High Power Support
- Auto-Adaption 250m Transmission
SPECIFICATIONS
Ports PoE (1~6):
10/100Mbps PoE ports (RJ45)
PoE (7~8):
10/100Mbps PoE ports (RJ45),Supports bt 60W High
Power
LAN:
10/100Mbps uplink port (RJ45)
Transmission Rate 200Mbps Full Duplex; 10 or 100Mbps Half Duplex
Transmission Distance 100Mbps /10Mbps,Auto-Adaption 250m
Performance
Specifications
Bandwidth: 1.8Gbps
Network Latency (10 to 100Mbps):
≦16μs (use the 64byte package size)
MAC address table: 2K
The Frame Filter & Transmission Rate:
14800pps the most for 10M port, 148800pps the most for
100M port
Networking Standard IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at/bt Power over Ethernet
Power Support Power Input:
AC 90~240V Total ≤ 120W
AI Watchdog: Port 1~8
Power Output:
PoE1~6 Port: 1/2 (+52V), 3/6(GND)≤30W
PoE 7~8 Port: 1245 (+53V), 3678 (GND) Compatible1/2
(+52V), 3/6 (GND) ≤ 60W
Protection Level Lightning Protection: 6KV
ESD Protection: 8KV
Dimensions (mm) 187 * 139 * 43
Net Weight (kg) 1
Working Environment Operating Temperature: -30°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing
Package Content AC Power Cable, User Manual
