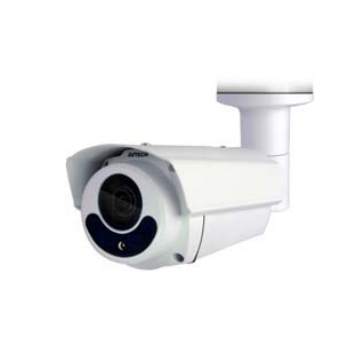

AVTECH DGC5646
Motorized Quadbrid 5MP IR Bullet Camera
FEATURES
(1) 1/2.5” CMOS Sensor with 5MP video output
(2) Low light sensitivity of 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON)
(3) Quadbrid video output with TVI, CVI, AHD & CVBS to fulfill different customers’ requirements
(4) DWDR to increase image recognizability in overexposure and dark areas
(5) Day and night 24-hour surveillance with IR effective distance up to 50 meters
(6) IP66 for weather-proof application
(7) Camera parameters adjustable when used with AVTECH HD CCTV DVR
(8) Microphone built-in for audio recording
SPECIFICATIONS
MODEL DGC5646
Video Mode TVI, CVI, AHD & CVBS switchable
Pick-up Element 1/ 2.5” CMOS image sensor
Number of Pixels 2560 (H) x 1920 (V)
Video Frame Rate 5MP @ 20fps
Min. Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed AUTO: 1/20 sec ~ 1/20000 sec
Lens motorized f2.8 ~ 12mm / F1.4 ~ F2.8
Lens Angle Wide: 113.5° (Horizontal) / 59.3° (Vertical) / 137° (Diagonal)
Tele: 33.4° (Horizontal) / 18.7° (Vertical) / 38.2° (Diagonal)
IR LED 4 units
IR Effective Distance Up to 50 meters
IR Shift YES
Day & Night Mode YES
Audio Microphone built-in
Noise Reduction YES
IRIS Mode AES
White Balance AUTO
AGC AUTO
Sharpness YES
Flickerless YES
BLC YES
DWDR YES
IP Rating IP66
Operating Temperature -20℃ ~ 40℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 120mA (IR lED OFF); 340mA (IR LED ON)
Net weight (Kg) 0.94
Optional Junction Box AVA456-WBKT / AVA456-WHKT
Certification CE
